2015 Horizon E84

$5,525,000 USD

  • $5,525,000 USD
  • Active
  • New
  • Motor Yachts
  • 2015
  • Horizon
  • E84
  • North Palm Beach, Florida, US
  • Power
  • 84ft / 25.60 m
  • Cat
  • C32
  • Inboard
  • Diesel
  • Fiberglass
  • 2015-01-06
  • 2016-09-19
  • 1858205

Delivery available immediately!

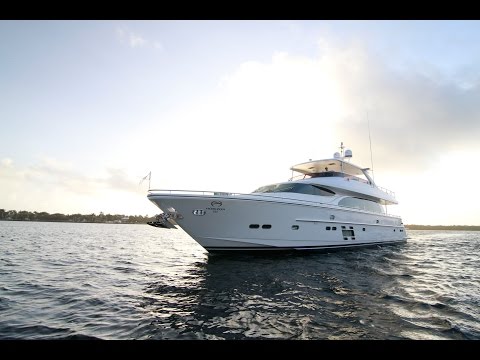

This 2015 Horizon E84 motoryacht offers features normally seen on larger vessels but she can be operated with a smaller crew and/or by knowledgeable owner-operators.  Numerous indoor and outdoor spaces -- including the salon and formal dining areas, open flybridge and aft deck – provide flexible options for entertaining guests, and her comfortable four stateroom layout ensures there will be no complaints while on board.  A mini lower helm compliments the main helm on the flybridge and is in prime location on the forward main deck, while still allowing room for a very comfortable dinette seating design.  Ideally suited for cruising in the Bahamas, this Horizon E84 promises the luxury, function and excitement that you have been searching for in a yacht.

The Horizon E84 motoryacht model possesses all the identifiable features of a world-class luxury yacht.  She can be customized by selecting from a variety of design options, including three or four stateroom layouts, as well as open bridge, skylounge or cockpit exterior configurations.    With her generous beam, flexible layouts and numerous standard amenities, the stylish E84 can be a spacious and comfortable family retreat or a luxurious cruising yacht – the choice is up to you.

Main Deck & Superstructure

  • White gel coat finish
  • One-piece hull SCRIMP cored lamination w/ deep skeg & longitudinal girders
  • Hull, deck & superstructure built w/ SCRIMP
  • Solid fiberglass hull bottom
  • High-density foam cored hull sides, decks & superstructure
  • Stringers with high density foam coring
  • Interior structural components all properly bonded to hull
  • Strong collision bulkhead for extra safety
  • International brand anti-fouling bottom paint w/ anti-osmosis treatment

Forward & Aft Decks

  • Non-skid fwd deck

  • Frameless windows, tinted, tempered & laminated glass

  • Low-E glass for front windshield

  • Custom-designed large “H” window in Master

  • Solid S/S rub rail around upper hull side

  • (18) S/S storm covers for portlights

  • (2) Maxwell VWC3500 vertical hydraulic anchor winches

  • (2) High tensile 1/2 inch, 250-ft anchor chains

  • (2) Chain counters in flybridge

  • (2) Aritex CQR plough anchors, 80kg

  • Freshwater anchor chain washdown

  • Heavy-duty S/S 2” handrail w/ 1-1/4” stanchions

  • (2) Deckhouse side entrance doors

  • (4) FRP bulwark side doors

  • Fwd sunpads & bench seating; bow teak step w/ cushion

  • Fwd deck storage lockers for fenders & lines

  • Teak aft deck, swim platform & teak steps

  • S/S sliding door for main salon, self-locking

  • Custom aft deck Hi/Lo dining table

  • Aft deck bar w/ sink, ice maker & fridge

  • Aft deck electric folding TV cabinet

  • Hydraulic Hi/Lo swim platform, 1500lb capacity

  • S/S gate doors from aft deck to swim platform

  • Built-in hot/cold water shower at swim platform

  • (8) S/S sockets on swim platform for removable hand rails

Flybridge & Boat Deck

  • Non-skid flybridge & boat deck

  • S/S rails around boat deck

  • Oversize drains with strainer on each corner w/ internal overboard drains

  • Custom bar w/ sink, fridge & icemaker

  • (3) Custom S/S bar stools

  • Propane BBQ in boat deck cabinet

  • Corian countertops

  • Custom U-shaped seating & teak dining table

  • Hatch on the hardtop

  • (2) Tokai search lights

  • Buell air horns on top of radar arch

  • Hydraulic dinghy davit Steelhead SM2000

  • Fully air conditioned bridge

  • Helm console w/ full set engine gauges; monitoring system for impt. equipment; magnetic compass; fuel & water gauges; nav lights; camera system for aft deck & ER; & 2 helm chairs

Engine & Propulsion Details

  • Twin CAT C32A 1600HP diesel engines w/ reduction gears
  • S/S shafts Aquamet 22HS
  • 5-Blade propellers
  • Main & intermediate bronze struts w/backing plates
  • Shaft & rudder packing glands w/ Tides Marine seals
  • Glendinning engine controls w/ backup system
  • Hynautic power steering system
  • S/S rudder w/ zinc plates
  • S/S emergency tiller in rudder cabin
  • Hydraulic ABT bow & stern thrusters, 38HP
  • Zero Speed Stabilizer 300/9X
  • S/S hydraulic trim tabs
  • Underwater exhaust system for engines w/ mufflers
  • Engine compartment ventilation blowers
  • Engine mounts on S/S engine bed bonded to FRP hull girder
  • Fire insulation & insulated ER door
  • Engine alarm system for low oil pressure & high water temp
  • Air compressor
  • Central vacuum cleaner
  • Mini lower helm w/ controls & display screens on main deck
  • Third docking station on aft deck port side

Mechanical Systems

  • Chilled water Marine Air air conditioning Backup A/C circulation pump
  • 2,250 gallon aluminum fuel tanks w/sight & electric gauges
  • Dual Racor 75/1000 MA fuel filters/water separator, each engine
  • Fuel transfer pump
  • RACOR 500MA fuel filter for each generator
  • Reverso FPS210 fuel polishing system
  • Oil change pump system for engines & generator
  • 420 gallon fiberglass water tanks
  • Sea Recovery AQM water maker, 900 gal/day
  • High-volume AC fresh water pressure pump & back up DC pump
  • Fresh water charcoal filters in main supply pipe & galley
  • Marine grade lines for fresh water system
  • (2) 30 Gallon water heaters
  • Hot water circulation pump
  • Hamann sanitary waste treatment system
  • Tecma toilet system
  • 200 gallon holding tank w/macerator pump
  • 100 gallon sump tank
  • “Y” valve for holding tank with deck fitting for dockside pump out
  • Five electric RULE bilge pumps
  • (2) Manual bilge pumps in ER & forward cabin
  • High water level alarm for bilges
  • Fire insulation in ER
  • Integrated fire alarm system in PH w/ detectors in each cabin
  • Fixed fire extinguisher (FM200) for ER w/ remote control
  • Auto shutdown system & automatic fire damper system
  • (4) Portable fire extinguishers in recessed lockers

Electrical Systems

  • LED interior & exterior lighting system
  • Maretron monitoring & control system
  • (2) Onan 32kW generators w/ sound shield
  • 100A shore power system w/ (2) 100A cable masters & (2) 100A ISO boost transformers
  • Emergency power package & lighting system
  • (2) House battery inverter/chargers
  • Vapor proof battery switch
  • (4) 255Ah AGM start batteries for engines/generators
  • (8) 210Ah AGM batteries for ships DC 24V service power
  • (2) 210Ah emergency batteries w/ dedicated charger
  • GFI protection for all AC outlets in heads, galley & ER
  • Electrolysis bonding system
  • Cathodic protection w/ zinc anodes for shafts, struts, etc
  • (4) Underwater lights
  • (2) Stern docking lights

Interior Decor & Equipment

  • Guest accommodations include master stateroom, port twin cabin, stbd bunk cabin & VIP cabin
  • Crew area has 2 staterooms w/ head, crew galley & dinette, w/ access from salon & transom
  • South American Walnut, semi-gloss for main wood
  • Custom luxury soft goods & lighting package
  • Dayhead in main salon
  • GE stacked washer/dryer on fwd lower deck

SALON

  • Custom granite floor at salon entrance
  • Leather L-shaped sofa, loveseat & chair
  • Custom coffee table & ottomans
  • Wine cooler
  • Custom dining table w/ leaf insert & 6 chairs
  • Custom Hi/Lo glass screen separating salon & galley

GALLEY

  • Silestone countertops & country kitchen tabletop
  • Subzero full height refrigerators w/ freezer drawers
  • Extra Subzero freezer drawers
  • GE cooktop, oven & microwave
  • GE dishwasher
  • Broan trash compactor

CREW QUARTERS

  • Kenyon cooktop
  • Norcold fridge/freezer
  • GE microwave
  • GE stacked washer/dryer

Electronics

  • Panasonic PBX telephones w/ intercom feature in salon, PH, master, VIP & crew mess; other cabins have outlets
  • Exterior connector for shore phone & TV
  • KVH HD7 satellite TV antenna & dummy dome
  • Wifi booster system w/ wireless routers

AFT DECK

  • 32" LCD TV
  • Bose Lifestyle SA-3 stereo system

SALON

  • 46" LCD TV
  • Bose Lifestyle V35 home theater system w/ iPod dock
  • Blu-ray player

GALLEY

  • 28" LCD TV
  • Bose Lifestyle SA-3 stereo system

MASTER STATEROOM

  • 40" LCD TV
  • Bose Lifestyle 135 home theater system w/ iPod dock
  • Blu-ray player

VIP STATEROOM

  • 32" LCD TV
  • Bose Lifestyle 135 home theatre system w/ iPod dock
  • Blu-ray player

PORT TWIN GUEST STATEROOM

  • 28" LCD TV
  • Fusion stereo system

CREW QUARTERS

  • 28" LCD TV (port cabin & mess)
  • Fusion stereo system

MINI HELM

  • Garmin 8000 navigational system
  • GPSMAP 8208 MDF 8” multifunction display
  • GMI 20 Digital Marine instrument display
  • GHS 10 handset
  • GHC 20 helm control unit & course computer unit

FLYBRIDGE

  • Bose Lifestyle SA-3 home theatre system
  • GARMIN 8000 navigational system
  • (3) GPSMAP 8215 MDF 15” multifunction displays
  • GMR 624 HD open array radar 6kW, 72nm
  • GMR 1226 HD open array radar 12kW, 72nm
  • GXM Satellite weather antenna
  • (2) 300 Marine VHFs
  • AIS 600 Class B Transceiver
  • GHC 20 Marine Autopilot control unit
  • GHP 20 Marine Autopilot system w/ smart pump
  • GRF 10 Garmin rudder feedback
  • GMI 20 Digital Marine instrument display w/ gWind transducer; depth, speed & temp transducer
  • GND 10 Black box bridge
  • GNT 10 NMEA 2000 transceiver
  • Marine Wi-Fi adapter kit

disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
