2013 Ferretti Yachts

620 fly

62' / 18.9m

Hull type: Planning modified V

Entry forward & type of transom / stern: raked stem, fine entry and an opening

transom stern.

Swim platform: Mechanically fastened to hull and hydraulically lowered and raised.

Decks: Teak overlay on aft deck and non-skid tread pattern

Type of propulsion: Twin screw with V drive propeller shafts

Type of engines: Turbo charged diesels.

Masts & Covers: Mast supporting navigation and communication equipment.

Hull colors & type: White gel coat.

Deckhouse colors: Same as hull.

Antifouling colors: Black

Main deck aft:

• Teak overlay on the sole.

• There is an athwartships settee arrangement directly forward of the transom with

storage beneath.

• Steering station port side

• Access to the captain’s cabin port side

• Center line hatch in the sole for engine room access.

• Glass panel and sliding door between the main salon and deck areas.

• Teak stepped stairway up to the flybridge starboard side.

• Bench top and sink starboard side forward

• 'Raritan’ ice maker beneath the bench top. Test operated.

Foredeck:

• Remote windlass controls.

• ‘Quick’ anchor windlass.

• (2) x flush deck hatches with chain bin access beneath.

• Mooring cleats.

• A round opening hatch in front of the cabin top sun pad.

Main side decks:

• Mooring cleats midships.

• Water fill starboard side deck.

• Waste discharge starboard side deck.

Swim platform and transom:

• Teak covered stair access up and down from main deck starboard side.

• Passarelle port side.

• Hydraulically operated swim platform.

• A swim ladder port side.

Flybridge deck aft:

• A mast with communication and navigation systems.

• A U -shaped dinette around a table.

• A benchtop and sink port side.

• A ‘U-Line’ ice maker and ‘Vitrfigo’ refrigerator beneath the bench top. Test

operated.

• An electric grill on the bench top with a lift up lid.

Flybridge forward:

• Helm station and console starboard side.

• Seating behind helm station port and starboard.

• An athwartships sun-pad area forward of the helm console.

• A Bimini style overhead cover.

Guest accommodations: 6 guests in 3 cabins

Crew accommodations: 1 crew in 1 crew cabin.

Guest Accommodation: Access down a stairway forward from the main salon deck.

Lower deck forward to aft:

VIP cabin forward

• VIP stateroom with access aft from center of passage way.

• Double berth on centerline

• A glass opening hatch above the berth.

• Storage lockers aft port and starboard.

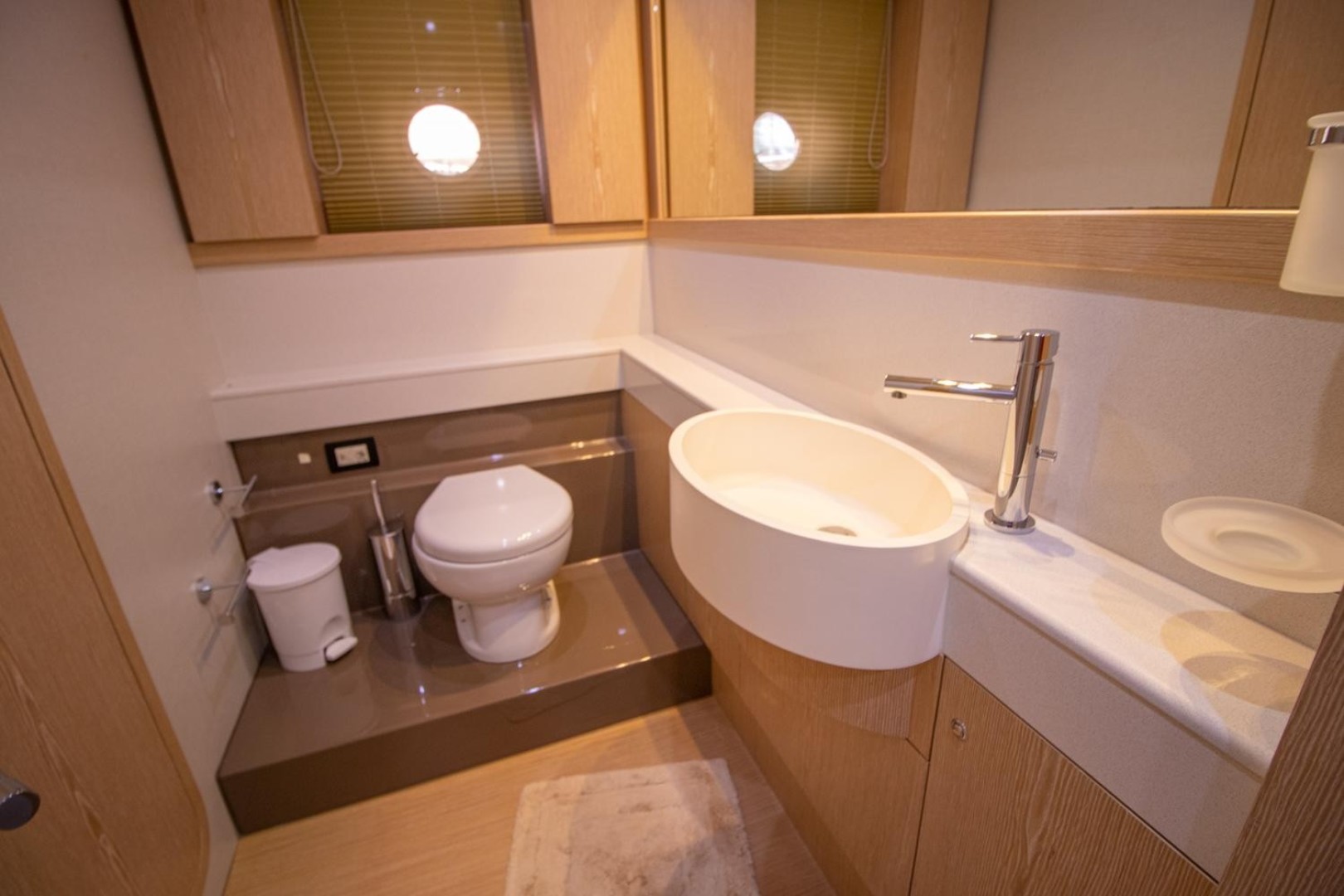

• Ensuite shower and head port side aft

Starboard side guest cabin:

• (2) x single berths inboard and outboard aft.

• Storage closet forward outboard.

• Head with wash basin and shower forward.

Midship passage way:

• Access down from main salon.

• Laundry facility port side.

• Small walk-in closet port side with electric breaker panels

Aft master cabin:

• Double berth port side centerline aft.

• Ensuite head and shower compartment accessed aft starboard side.

• Settee outboard starboard side.

• Port side dresser top with drawers and storage lockers beneath.

Crew cabin:

Accessed through a door from the aft deck port side.

• (1) x single lower berth.

• Head and shower port side outboard.

• Storage lockers.

Main deck salon:

• Access from starboard aft deck through a sliding door going forward and from the

guest accommodation center passage up the stairs going aft.

• Step up to the salon floor from the aft deck

• L -shaped settee arrangement starboard side forward and outboard.

• Settee port side.

• Helm station with seating and console port side forward.

• Counter top port side aft with storage beneath.

• L shaped galley starboard side aft.

Access: From a teak covered recessed flush hatch center on the aft deck and down a

stainless-steel ladder.

Ventilation: Natural air induction from both port and starboard ventilation boxes and an

exhaust fan port side aft.

Protection:

• Bilge high-level alarm.

• (2) x automatic submersible bilge pumps.

• Automatic and manual fire suppression system.

• Remote located manual fuel shut off pull cables.

Forward engine room port to starboard:

• ‘Pye Barker’ fire suppression system.

• Racor fuel filters

• Bilge pump manifold

• Main engine control boxes.

Port side forward to aft:

• Main engine.

• M/E exhaust riser and GRP pipe.

• Room exhaust fan.

• Fresh water pump and expansion tank

• Hydraulic power pack for tender platform

• Hydraulic power pack for steering system.

Starboard side forward to aft:

• Main engine

• M/E exhaust riser and GRP pipe

• Battery boxes.

• ‘Victron’ battery chargers.

Aft port to starboard:

• Fresh water manifold

• ‘Besenzoni’ hydraulic power pack for Passerelle and swim ladder

• ‘Glendinning’ shore power cable system.

• ‘Condaria’ air-conditioning system and circulating pump.

‘Seafari’ watermaker and pumps, filters and control panel:

• Bow and stern thruster kill switches.

• ‘Onan’ generator.

• Generator exhaust.

• DC fuse box.

• DC breaker box

Engine room center bilge aft to forward:

• (2) x submersible pumps and alarm.

• Main engine cooling water intake valves and strainers.

• Generator cooling water intake valve and strainer

• Fuel valves and tank.

Engine room insulation:

• Overhead that appeared to be a vinyl outer fabric covering a foam and synthetic

lead core sound insulation.

Engine room deck sole material:

• Silver PVC checker plate non slip pattern on honey comb board.

MAIN ENGINES & EXHAUSTS:

Engine: MAN

Port /Starboard Hours: 1080 hours

1000 Hrs Service completed by MAN dealer

Model: D2840LE423

Cylinder configuration and number: V 10

Power rating: 1110 HP

Engine serial numbers:

Port side 660 3188 811 3200

STBD side 6603190 803 3200

MARINE GEARS:

Manufacturer: ZF

Type: Hydraulic V drive, oil cooled via engine cooling water heat exchanger.

Model: ZF 500-lV

Serial numbers: Port 20166260, Starboard 20166261

STEERING:

Manufacturer: ‘BCS’

Type: Hydraulic

Model: P89S

BOW THRUSTER:

Manufacturer: Sidepower

Type: Transverse tunnel, electric, bronze right-angle drive, double composite plastic

propellers on stainless-steel shafts with zinc anode cones fitted.

Rating: 24-Volt DC electric 8 kW

Operation: Joystick

AUXILIARY MACHINERY

Generator: ‘Onan’ utilizing a Cummins 4- cylinder turbo diesel.

Location: Aft of the engine room behind the main engines.

Hours: 4027

Model: 21.5 5MDKBP/R/V

Serial No: B120300083

KW: 21.5

FRESH WATER SYSTEM

Pump type: 1 X Gianneschi 220-volt AC electric pump.

Location: Port side aft in the engine room.

Distribution: A manifold with individual valves to supply outlets throughout the yacht.

Level monitoring: On the display screen at the lower helm station.

Pipes valves and hoses: Plastic and rubber hoses throughout the yacht. Plastic

valves.

Filters: Not sighted.

Shore water connection: Not sighted

Hot water boiler: 1 x ‘Ariston’ 220volt-AC 10-gallon electric boiler located in the

accommodation passageway bilge.

Watermaker:

Manufacturer: Seafari

Location: Aft of the engine room and installed in modular locations.

Operation: The system operates on 220-volt AC.

MARINE TOILETS

Number installed: (4):

Manufacturer: Tecma

Operating On: 24-volt DC electric individual fresh water flush pump and macerator

pump discharging to the (1) black tank.

Waste System Plumbing and Piping: High density polyethylene and rubber sanitation

hose.

ELECTRICAL:

The yacht is provided with a generation and distribution system for the voltages of

120/240 at 60 Hz.

AC System:

The ships AC system comprises of:

• 1 x Main Distribution panel

• 1 x 21.5 KW Generator

• 1 x 15 KVA Shore power transformers

General Description:

The yacht has a single generator which is wound to produce 120/240 volts at 60 cycles

single phase and neutral.

The power from the main generator is placed on to the main switchboard bus via a

single breaker. Power is then further distributed around the vessel via the several

distribution panels fitted around the yacht. Most large current consumers are rated at

240V single phase.

Power can also be supplied to the main bus whilst alongside by single shore power

connection through the isolating shore power transformer and then onto the main bus.

Switchboard & Distribution:

The main power switchboard (MSB), located in the forward port side of the lower helm

station.

Shore Power:

The shore power system consists of:

• 1 x 100amp shore power cord.

• 1 x shore power connection

• 1 x 100 Amp breaker at the aft engine room area

• 1 x Galvanic isolator

DC System:

The DC service onboard is a 24-VDC. The DC system comprises of the following

components:

• 2 x 24V Port Main Engines Start Batteries

• 2 x 24V Starboard Main Engine Start Batteries

• 3 x 24V Ships Service Batteries

• 1 x 12V Generator Start battery

The main DC distribution panels located at the aft engine room bulkhead and port side

of the lower helm station.

Lower helm station:

• Furuno chart plotter

• Furuno radar

• (2) x 9-inch main engines touch screen displays

• Bonning ship’s monitoring system touch screen

• Furuno autopilot control

• ITT Jabsco Search light controls

• Side Power Bow and Stern thruster control joysticks

• ZF main engine throttles

• Furuno VHF Ray 55 with mic

• (2) Main engines start/stop AHD-EOP controls

• Anchor winch button

Fly bridge:

• Furuno chart plotter

• Furuno radar

• (2) x 9-inch main engines touch screen displays

• Bonning ship’s monitoring system touch screen

• Furuno autopilot control

• ITT Jabsco Search light controls

• Side Power Bow and Stern thruster control joysticks

• ZF main engine throttles

• Furuno VHF Ray 55 with mic

• Anchor winch button

Mast equipment:

• (2) 8-ft VHF antennas

• KVH I4 satellite TV dome

• Furuno radar scanner

• Furuno GPS antenna

Aft deck station

• ZF ME throttles

• Sidepower Bow & Stern thruster joysticks

• (2) Main engines start/stop buttons

Aft deck area:

• (4) round 7-inch L speakers

Main salon:

• Samsung smart 32-inch TV on the lift

• DirecTV H24 satellite receiver

• RSP -1572 AVR

• LG BD player

• Universal MX-980 remote

• (5) round 5-inch ceiling speakers

• (1) subwoofer

• (4) JL speaker’s amps

Master SR:

• Samsung smart 33-inch TV

• DirecTV H24 satellite receiver

• LG BD player

VIP:

• Samsung 28-inch TV

• LG BD player

• DirecTV H24 satellite receiver

Forward deck area:

• (2) cone sound speakers

Fly bridge:

• (4) round 7-inch JL side mounted speakers
