2022 Outback Yachts

50' / 15.24m

Versatility. Efficiency. Performance. Outback Yachts, adhering to the concept of form follows function, has completely re-imagined recreational yachting. The Outback team, seasoned industry veterans, worked with legendary Michael Peters Yacht Design to create an amazingly versatile, extremely efficient, and exceptionally seaworthy yacht. Perfect for day outings, weekend adventures, or open water cruising, her expansive outdoor deck space and practical interior accommodations provides the best in safe and comfortable cruising. Their flagship model, the Outback 50, actually 56’ in length, offers endless possibilities. She draws only 3 feet and has a keel to protect her running gear. With a pair of 480 hp Volvos she delivers speeds to 25 knots. A custom-built version can be delivered in less than a year.

This unique Michael Peters design has the engines and generator placed under the aft deck, rather than under the salon sole. Her conventional straight shaft drive eliminates the complexity of the IPS or V drive alternatives and has a much shorter length shaft than other conventional drive vessels. The fuel and water are positioned over the center of buoyancy, so the trim is never affected by your fluid levels, and all that weight is concentrated where it benefits performance the most. This arrangement creates a smooth, quiet, and comfortable ride. The Outback 50 is also extremely economical with a range of approximately 1200 miles at trawler speeds.

Whether you’re out on the water for the day, a weekend adventure, or a longer offshore cruise, the revolutionary Outback 50 offers endless possibilities.

•Hull topsides and superstructure in general are foam cored FRP composite, with outer layers utilizing vinyl ester resins and E-glass reinforcements throughout the structure.

•Hull is solid FRP laminate below the waterline and form cored FRP above.

•All molded FRP parts are finished with high gloss Cook 941 gelcoat.

•High density foam or solid laminates are used in areas of concentrated loads from hardware mounting.

•Molded propeller tunnels are recessed into hull reducing draft and shaft angle.

•Main deck is fully cored with flat & cambered sections with transverse & longitudinal support of girders & “hat section” stiffeners.

•Twin Volvo D6, 480 hp diesels

•SidePower 24V bow and stern thrusters with proportional speed control

•Integrated fresh water heat exchanger cooling system

•4 blade bronze propellers

•Aquamet #19 propeller shafts

•Tides Marine dripless shaft seals

•Tides Marine dripless rudder seals

•Groco raw water intake strainers & thru hulls

•Engine room blower & vent ducts.

•Engine room floor with FRP non-skid sole

•Gloss white engine room

•Fully insulated sound damping material

•Anti-vibration mounts on engine stringers

•Teleflex BA-200 hydraulic steering system (2) station

•Zip Wake trim tabs with gyro to maintain proper trim and reduce roll

• (2) Garmin GPSMAP 8616 chart plotter/sonar combo 17” at flybridge helm and pilothouse

• Garmin Reactor 40 Autopilot w/smart pump v2

• Garmin GMR Fantom 18-inch 40 W solid state Radar

• (2) Garmin VHF 110 radios

•Installation is neat and accessible and clearly labeled

•(1) 550-gallon aluminum fuel tank forward of E/R bulkhead

•(2) 2” fill lines. One port and one starboard

•Site gage on fuel tank

•(2) Racor fuel filters

•(4) Seaflo 24V bilge pumps with 3-way switches and Ultra float switches

•Beckson manual bilge pump

•(2) SS 75-gallon water tanks located at sole

•Crossover with shutoff valves for filling tanks 150 gallons total

•Jabsco Par Max 4” 24V fresh water pump

•(2) Jabsco accumulator tanks

•Seaward F1100 galvanized steel 120V water heater

•Trionic 14.5 gal 24V sump tank for head sinks & showers

•80-gallon black water tank

•Sealand T series 24V discharge pump for holding tank

•Sealand Tank Watch 4 depth indicator

•Jabsco seawater deck wash pump

•(3) Freshwater hose coils at bow, stern and flybridge

•Whale Twist Deck shower at transom

•Northern Lights 12kw generator with sound shield

•Remote start/stop panel for generator at lower helm

•Gas/water separator muffler for quiet generator operation

•AC/DC main control panel located near lower helm

•(4) Mastervolt AGM batteries for house system

•(2) Mastervolt AGM for engine start

•Mastervolt converter 24/12-24

•(2) Marinco shore power outlets 50 amp/110v/220v

•ProMariner galvanic isolator and bonding system

•Mastervolt “Battery Mate” isolator

•Mastervolt Chargemaster Plus 24V/60 for house service

•Mastervolt Chargemaster 12V/35 for engine batteries

•Kraus & Naimer transfer switch for forward or aft shore power

•110 V outlets throughout flybridge, infinity deck and engine room GFCI protected, and waterproof at exterior outlets.

•24 Volt house system

•LED lighting throughout with dimmers

•Effective lighting in all machinery and storage spaces

•Main deck safety lighting

•(24) Exterior overhead Infinity deck lighting

•(5) Hella LED navigation lights – US compliant

•Dometic Marine Air air conditioning and heating system. (2) remote mount compressors with 3 air handlers.

•Muir Windlass VRC1250 24v with 2 station controls and SS chain stopper

•50’ ACCO BBB galvanized chain with 300’ 5/8” nylon anchor line

•Bruce style 66 lb. anchor

•Molded FRP pulpit with SS anchor channel and roller.

•(4) 12” SS mooring cleats

•(2) 15” SS mooring cleats at transom

•(1) 8” SS mooring cleat on platform for snubber line

•(2) SS Hawse holes located midships

•(2) SS chocks in way of forward mooring cleats

•Aluminum mast (white powder coat) on flybridge. Hinged to lower bridge clearance to 15'

•(3) Exalto wiper/washer system with speed control

•L – shaped lounge, upholstered

•Molded FRP helm console

•Todd Marine helm chair with slider assembly

•Second Flybridge helm chair option

•(2) 3” SS stanchions for boat deck support

•Structural lamination for future davit

•SS 1 ¼” safety rails port and starboard

•SS 1 ¼” safety rail surrounding ladder to Infinity deck

•Tinted Plexiglass venturi screen

•FRP dining table with (2) SS posts

•Hinging Navigation mast. Powder coated aluminum

•(1) Large engine room access hatch with dual ram electric hydraulic lift

•(1) Quick access engine room hatch with ladder

•(1) Large generator room access hatch with dual ram electric hydraulic lift

•(1) Lazarette access hatch

•Hatches drain to waterline

•Flexiteek decking for entire deck and swim platform (owner selection)

•SS retractable ladder to flybridge with teak stair treads

•Port and starboard FRP bench seats with lift top storage

•SS (3) piece transom railing system with multiple configurations

•SS retractable swim ladder with cover on platform

•(2) Pop up SS cleats on platform

•SS 1 ¼” safety handrail from Infinity deck to bow

•LED overhead lighting

•LED deck safety lighting

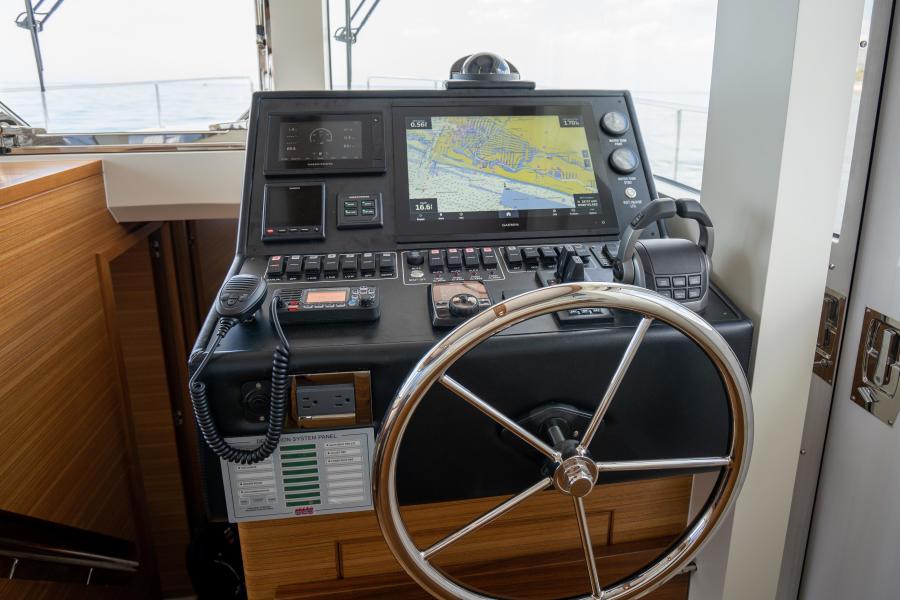

LOWER HELM:

•Sliding access door to starboard side deck

•Dual Volvo engine monitoring systems

•Twin Lever Shift & Throttle Control (EVC-E)

•Triple windshield wipers w/ multiple speed settings

•Windshield washers plumbed from the freshwater system

•Ritchie SS 2000 compass

•Switch controls for horn, running lights, anchor light, engine room blowers, & bilge pumps

•Custom SS spoke steering wheel

•Upholstered bench seat with SS adjustable bolster

•SS footers

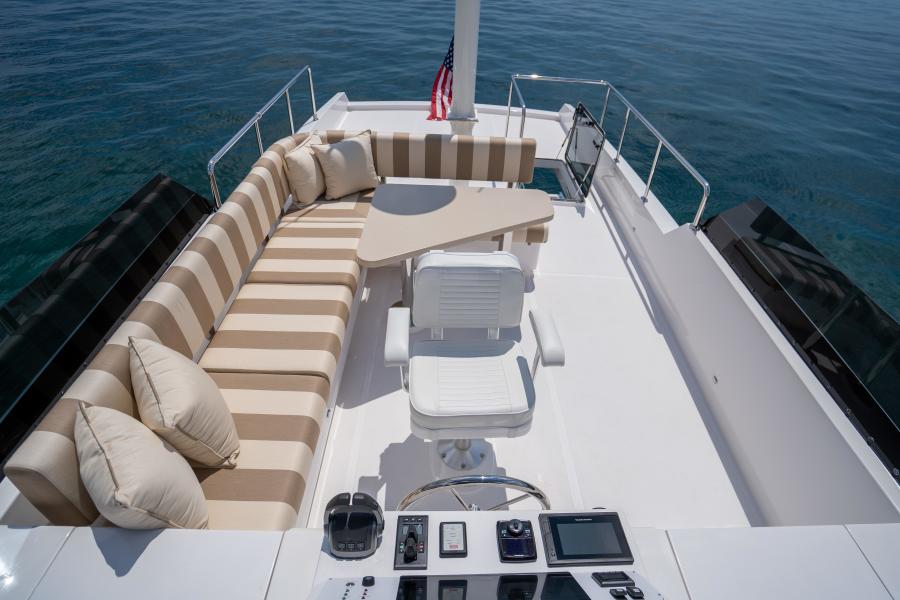

FLYBRIDGE HELM:

•Volvo engine monitoring systems

•Twin Lever Shift & Throttle Control

•Ritchie SS 2000 compass

•Switch controls for horn, running lights, anchor light, engine room blowers, & bilge pumps

•Custom SS spoke steering wheel

•Port and starboard lift top gear storage

•Todd Marine white helm chair with slider assembly

•“L” settee with storage

•5” foam cushions, with storage under

•Hi-low dining/cocktail table with removable leaf

•Entertainment center with Samsung LED TV with lift

•Sound deadening, soft headliner panels

•Storage cabinet

•Hinged stainless steel door to cockpit

•Breaker panel

•Deep chart table forward of L-settee seat port

•Beautiful galley with amazing views.

•Stainless steel under mount sink with cover

•(2) U-Line refrigerators/freezers

•Kenyon 3 burner cooktop

•Microwave oven with stainless steel face

•Drawers and storage lockers below the counter.

•Overhead cabinets port and starboard

•Island queen berth with 9″ foam mattress with laminated teak trim

•Cabinet with 6 drawers on aft bulkhead

•White planked cabin sides with open shelving

•(2) Manship SS opening portlights

•Manship SS overhead hatch

•(2) Stainless steel port lights in hull

•(2) BCM Catalina LED polished reading lights

•Cherry hull ceilings

•Drawers under berth and in bulkhead aft of berth

•Large Hanging locker

•Shelf locker

•Carpeted sole

•Sound deadening soft headliner panels

• Private access from master stateroom

• All molded FRP head

• Porcelain raised style sink

• Elongated Quartz countertop

• Satin finish teak laminate cabinet below sink

• Opening stainless-steel portlight with screen

• Upper mirror with ample open storage

• Large stall shower with SS framed shower enclosure and quartz seat

• Dual banks of 4 storage drawers

• Rule DC ventilation blower

• Polished chrome towel ring

• Moen faucets for sink/shower

• Tecma head

• Custom marble pebble style sole in head and shower

•Twin side by side berths with nightstand and engineered countertop

•6″ foam mattresses and laminated teak trim berth

•LED Catalina reading lights

•Modern vinyl ceilings with LED lighting

•Drawer/storage under berth

•Storage lockers, drawers and shelves

•Combo white plank paneling and teak veneer side

•Carpeted sole with access to head ensuite or from companionway

•(2) Stainless-steel Port lights in hull and opening stainless-steel port light with screen

•Cabinet with 6-drawers on forward bulkhead
