54 Sport Yacht
54' / 16.46m

Naples , Florida , United States
Riviera: 54 Sport Yacht
No Surrender is a 2021 Riviera 5400 Sport Yacht which is turn-key and ready to cruise. She is captain maintained and currently completing annual service and bottom paint.
Sports Cruiser
Fiberglass Hull
HIN/IMO: RIY54095D021
Vessel ID# 2795763

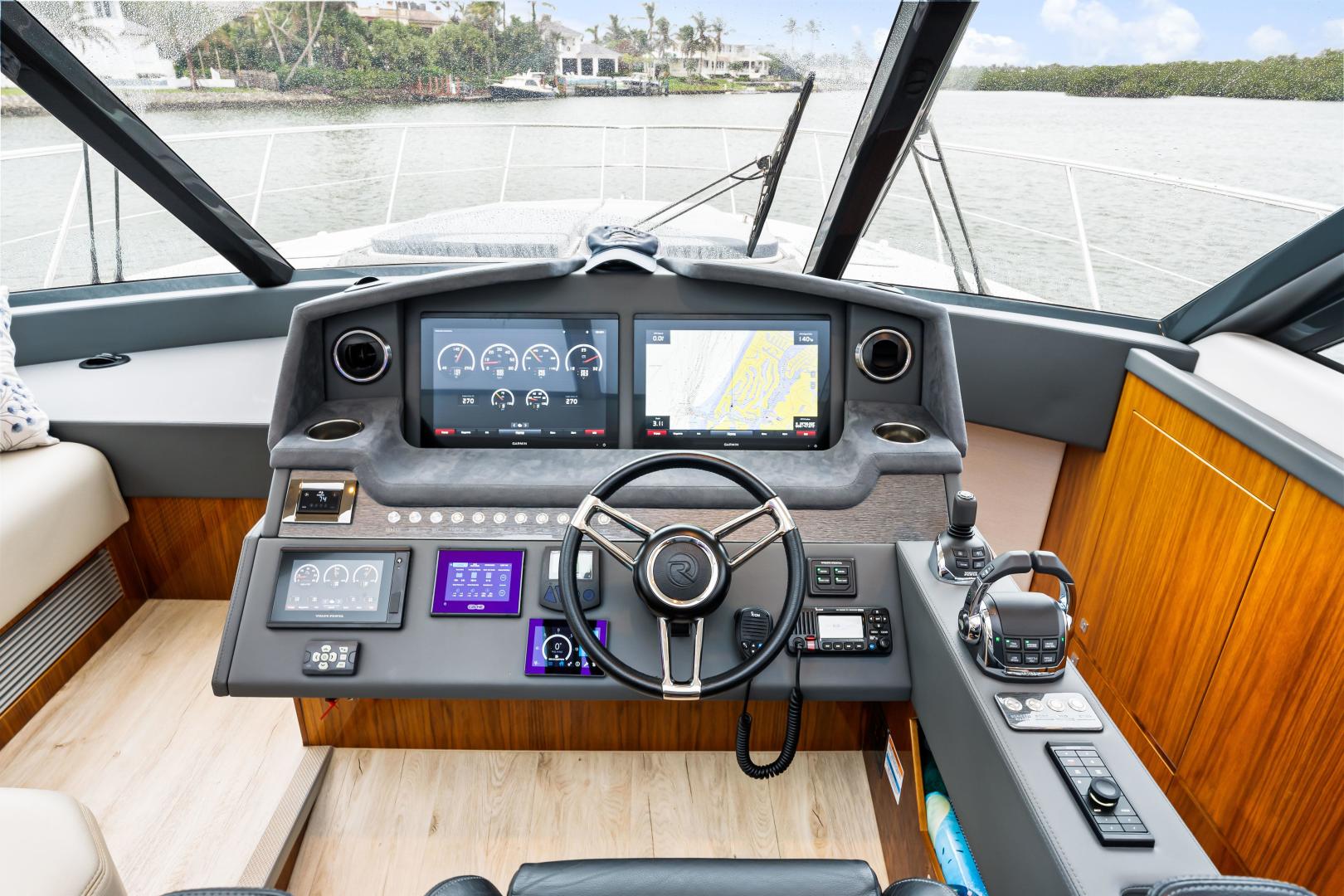

Dual (2) Garmin Volvo Glass Bridge 8617 17 Inch Multi Function
Fusion Apollo 770 And Three (3) Fusion Apollo 670
Seakeeper 9
$1,895,000 USD
€1,759,602 Euros
CA$2,558,411 CAD
£1,526,229 GBP

No Surrender is a 2021 Riviera 5400 Sport Yacht which is turn-key and ready to cruise. She is captain maintenance and currently completing annual service and bottom paint. This one-owner Riviera 54 Sport Yacht was originally delivered in Massachusetts and spent her first winter in climate-controlled storage in MA. She was subsequently cruised to Florida where she spends her summers in climate-controlled storage. No Surrender has low hours (270) on her Volvo Penta IPS 950s and is very well equipped with many options making her a very capable cruiser. These options include but are not limited to Seakeeper, Radar, Autopilot, two-cabin layout, upgraded audio, and much more. Please see full specifications for a comprehensive list of options included on No Surrender.

Riviera Yachts are known for their premium build quality, bluewater capability, and their exceptional range. No Surrender is no exception as she is capable of cruising over 350 NM at 26 knots* with a ten (10) percent reserve (*depending on load and conditions). In addition to stellar performance, the quiet and comfortable cruising characteristics of the Riviera 54 Sport Yacht will leave you relaxed and refreshed enabling you to enjoy the destination just as much as the journey. Please continue to full specifications for more information on No Surrender which represents one of the best opportunities in a lightly loved Riviera 5400 Sport Yacht.

Data Sheet
LOA 57' (17.45 meters)
Type power
Year 2021
Beam 16'
Draft Max 4'
Fuel Type Diesel
Hull Material Fiberglass

Engine 1

I D 134278
Engine Make Volvo
Engine Model Penta D11-ISP950
Engine Type Inboard
Drive Type Pod
Power HP 725.00
Power KW 540.63
Fuel Type Diesel
Hours 270.00

Engine 2

I D 134279
Engine Make Volvo
Engine Model Penta D11-ISP950
Engine Type Inboard
Drive Type Pod
Power HP 725.00
Power KW 540.63
Fuel Type Diesel
Hours 270.00

Generator 1

I D 8514
Generator Make Onan
Generator Model EQD
Generator KW 21.50
Full Details

Manufacturer Provided Details


“Creating the Platinum Edition was a rare opportunity to introduce more luxury, style and

truly inspired design; a challenge our acclaimed design team has relished.”

Rodney Longhurst - Owner Riviera


Riviera sport yachts are designed to turn heads. Their sleek aerodynamic lines attract comment and more than a little admiration at the world’s finest marinas. The Riviera 5400 Sport Yacht Platinum Edition exhibits an even rarer charisma. The exterior color palette of silver, black and white highlights its flowing elegant contours. This is design that speaks of luxury, power and exotic destinations. Design made to be appreciated and seen. Topping it all off, the Riviera Platinum Sliver hardtop and targa meld with the enormous black wrap-around windshield, rakish black boot stripe and full-length black hull windows to lend an air of sophisticated mystery.


To begin with, consider all the space and style on display. You have an uninterrupted eye-line from the forward deck all the way aft to the soaring saloon space and out onto the generous broad cockpit. That’s an enormous area to unwind and connect in, surrounded by Riviera luxury.

Speaking of luxury, the Platinum Edition introduces a new benchmark for gracious sport yacht living with many new refinements and innovations. The accommodation deck is the last word in designer comfort, style and attention to detail. Flying you to your next destination are state-of-the-art twin Volvo Penta IPS 950 Inboard Propulsion System (IPS) diesel engines.


Step aboard, the wide hydraulic boarding platform is teak-laid with a classic recessed swim ladder and cover hatch. A touch button tender garage lies forward, with an electric winch for easy tender launch or retrieval.

Now open the gleaming stainless steel transom gates and step out onto the alfresco cockpit. That’s timeless teak decking at your feet. The sporty hardtop overhead promises shade, shelter and something else besides: an electric touch button sunroof.

Take your place in the large plush, forward-facing transom lounge and consider all before you. Turning up the volume on the stereo with two weatherproof cockpit speakers. Family and friends luxuriate in the large L-shaped lounge forward to starboard, while tasty delights served from the dual electric BBQ and wet bar located to port fill their hi/lo teak table.


Making your way to the expansive forward deck is a breeze. Wide walk-around side decks, raised bulwarks, stainless steel side rails and thoughtfully positioned handrails make for safe, easy passage, even for children and pets. Deep foredeck lockers conceal a range of equipment where you need it. This large attractive area also doubles as a nature lover’s or entertainment hot spot. Be the first to spot a pod of dolphins. Or farewell the day over a round of refreshing sundowners. Look forward to lazing back on a double-sized sun pad with adjustable backrests and fold-up bimini. You can always pump up the foredeck volume via two weatherproof speakers located under the windscreen brow.


Great design makes every area of the 5400 Platinum Edition shine. Consider the ideally positioned galley. Simply open the ship-like bulkhead door and aft-facing awning window to position the chef at one with the interconnected saloon and alfresco cockpit activity. Trading

conversation and gourmet treats. The galley itself is U-shaped, generous in size and off to the side of all fore and aft traffic. But the inspired layout is far from the only refinement on show. You’ll relish a quality and level of galley appointments rarely experienced offshore. Now, every dish is made easier and no meal out of reach. In the 5400 Platinum Edition, this space boasts even more generous storage, stunning new waterfall benchtops, highly polished walnut cabinetry and the latest designer European appliances.


Sweeping glass capture ever changing views. A thousand prime destinations slide by outside. Light, space and an air of genuine luxury prevails inside. This… is… living. Every luxury is at your fingertips: reverse cycle air conditioning, push button electric sunroof or open the tinted and tempered glass side windows for fresh sea air. A refreshing drink may be in order. You’ll find

the fully appointed cocktail cabinet to port, adjacent to dual fridges with stainless steel drawers and built-in wine cooler. Cheers. Adjourn to the luxuriously large, L-shaped leather lounge also to port set around a polished, handcrafted timber dining table. (An electric hi-lo table which can cleverly reform as a day bed is optional.) To help you unwind in style, turn to the large LED television on its electric swing arm, complete with Blu ray and 5-speaker surround sound.


Skippering such a spirited sport yacht is more thrilling than you can imagine and far easier than you think. If you can drive a luxury modern car you can skipper this yacht. Those large display touch screens on the dash in front are the key. They’re intuitive, easy to read, monitor and operate. At a glance, they will inform and guide you through all you need to know: vessel controls, engine system monitoring and Volvo Penta Glass Cockpit navigation. What a thrill you’re in for when you slide into the ergonomic Alcantara and leather skipper’s chair and take hold of the sports car like steering wheel. At your command are class-leading Volvo Penta D11 engines powering twin pod drives that deliver silky smooth, breathtaking performance. Importantly for a sport yacht of this size, joystick maneuverability gives you highly-accurate control, even reversing into tight marina berths.


You notice design highlights everywhere onboard. Taking the companionway steps down from the saloon you look up and the soaring glass atrium above lifts your spirits and fills this whole area with light. The master stateroom below is elegant and regally sized, luxuriating across the full beam. Private and self-contained it boasts spectacular views to both port and starboard. The island bed is king-sized and supremely comfortable and matching bedside tables highlight the space on offer. There is even room for a private chaise lounge to starboard. Deep plush pile carpet and fabulous timber cabinetry for storage including his and hers cedar-lined hanging lockers, speak of a rare luxury. There is no finer place to settle back and enjoy your world class, fully integrated home theatre system.

Every area on the 5400 Sport Yacht Platinum Edition shines, not least the master bathroom. Located forward to port it has all the luxury touches you might expect, and then a few more. Spacious like the accompanying stateroom, it features a generous frameless glass shower stall, solid surface bench tops, above vanity basin and quality mixer tap. Its stainless-steel encased porthole can be opened to fill the space with fresh sea air and sunlight. Lovely. But if left open too long, an alarm sounds in the helm for safekeeping.


We know you want only the best for your guests, so welcome to the forward located VIP stateroom. Picture master-like luxury and comfort. Large walk around, queen sized island bed, reverse cycle air conditioning and high quality entertainment center with LED TV, DVD and iPod interface. Sweeping hull windows frame glorious views. Plush pile carpet cushions feet. And

storage needs are taken care of, in style. There is a cedar lined hanging locker to port, a cedar lined starboard storage locker with shelves and outboard storage cabinets with positive locking hardware.

As in the master, your guests have private access to a superb designer ensuite which also cleverly doubles as the day head.

Located to port is the third stateroom, ideal for accommodating children, grandchildren and extra guests in keynote Platinum comfort. After spending long fun-filled days on deck, the adult-sized upper and lower berths promise sweet dreams and restorative sleep. Your guests will wake up refreshed, step onto plush pile carpet and open their fragrant, cedar lined hanging locker housing that day’s clothes. Next stop, breakfast alfresco in the cockpit.


Access to the flow-coated engine room - with acoustic and thermal insulation and LED lighting - is via a deck hatch from the cockpit. Here you will quickly realize why Riviera is renowned globally for its engine room design. The impressive commercial air intake system helps to keep

the engine room temperature well below the manufacturer’s formal recommendation, further reducing fuel consumption. Air conditioning units are mounted high so gravity feeds condensation water into the common drain lines located on either side of the yacht draining aft and overboard. All onboard drains also feed into these common drain lines while the advanced mist elimination system with veins draws moisture from the air and feeds directly overboard. Four automatic bilge pumps with manual override are located at various points throughout the hull and pump directly overboard. There is even a dedicated space for a gyroscopic stabilizer -

another example of how Riviera is ready to embrace innovation to make boating even more enjoyable


All batteries onboard the 5400 Sport Yacht Platinum Edition are maintenance-free to ensure carefree boating and are housed in special battery boxes in accordance with American Boating and Yacht Council (ABYC) and the European Union’s CE industry standards. The house power is 24-volt, which allows for simpler charging, lower current draw and smaller cables (further reduced weight) than equivalent 12-volt systems. The Mastervolt inverter provides power to the icemaker, entertainment systems and all outlets onboard, ensuring watching television while relaxing quietly at anchor is whisper-quiet.

LED lighting is utilized throughout and provides trouble-free boating while reducing electrical current draw. The lamps use less than 10 per cent of the power required to run a halogen

lamp - no bulbs mean no maintenance and long service life. Additionally, Residual Current Device/Ground Fault Circuit Interrupter (RCD/GFCI) provides protection over the entire

yacht and also complies with ABYC and CE standards.


The fully integrated CZone digital switching system enhances the ease of monitoring and operation of the Riviera 5400’s onboard systems, including tanks, and extends centralized

touch screen control to lighting, pumps, batteries, entertainment systems and appliances.

CZone allows owners to operate multiple circuits at a single touch, energizing all lighting and electrics depending on your requirements. It comes pre-programmed with three modes - ‘Entertaining’, ‘Cruising’ and ‘Dock-unattended’ - and these modes can be customized. Other user-friendly features include interior light-dimming, timer controls, automated circuit control, wiper speed and wash functions. There’s also a ‘service’ mode that shuts down all power and systems.

Based on industry-proven Controller Area Network (CAN) technology, the CZone system offers DC and AC switching and over-current protection. Full systems monitoring (with alarms)

including AC voltage, current frequency and kilowatts, DC voltage, current and remaining battery capacity, along with fluid tank levels and indication for systems in operation, is clearly

displayed on the touch screen at the saloon entrance. There’s also the option of additional iPad connectivity so you can control CZone from anywhere onboard your yacht.


Every Riviera combines superior-strength hand lay-ups with a water-tight collision bulkhead forward, and independent compartments throughout the hull. Our legendary build quality also features vinylester resin in the outer layer of lamination to increase the ability to withstand water absorption. An isophthalic gelcoat exterior provides an impeccable and hard-wearing surface finish.

From the waterline down, the hull is solid GRP with reinforced bottom, keel and chines. Structural core material is used in the hull flanks, main deck and hardtop, while precisely fitted,

lightweight resin transfer-molded small parts have a double- sided gelcoat finish and are pre-fitted for a perfect seal when all the major components are bonded together.

Riviera uses only 316 marine-grade stainless steel in all our exterior fastenings. All stainless-steel rails feature ground and polished welds to ensure a consistently smooth and mirror finish. Our designers have also placed a firm focus on convenient access to every key maintenance point throughout the yacht so any issues can be quickly identified and addressed, and service costs are kept to a minimum.


We support all of our yachts with industry-leading warranties - 2-year express limited warranty and 7-year structural limited warranty. In addition, with all our Volvo Penta powered yachts,

we offer a 5-year Volvo Penta systems and electronics limited warranty. Life is too short for needless compromise. So when it comes time to invest in your dream motor yacht, why settle for a lesser option when you can enjoy all that makes up a Riviera.


Welcome to the largest luxury yacht building facility in the Southern Hemisphere, our purpose-built, state-of-the-art 16.8 hectare site at Coomera, Gold Coast, Australia. Our over 900-strong Riviera team applies lessons learnt more than 42 years and the building of over 5800 luxury motor yachts. Handcrafting yachts internationally feted for their peerless quality, build materials, structural strength, ease of operation and fine luxury finish.

Today, Riviera exports around 55% of our annual production to a global dealer network spanning every continent. We design and build luxury motor yachts from 39 to 78 feet in length across five distinct model collections.

Owners can choose from the proven blue-water Flybridge range, stylish and sophisticated Sport Yachts, the sporty and adventurous SUV series, long-range Sports Motor Yacht designs, the luxurious new Motor Yacht or the classic Belize Motor Yachts. New models designed to satisfy our owners’ ever-evolving needs are forever on our minds and drawing boards. It’s all part of a superior culture of customer care which goes way beyond exemplary after-sales support and maintenance. When you acquire a Riviera, you join a family of fellow owners worldwide, people who enjoy each other’s company, sharing adventures and advancing their boating knowledge and experiences in harmony with us.

Standard Features


Hand laid, molded fiberglass hull, deck (with core), cabin top & enclosed hardtop

Independent compartments throughout hull

Isophthalic gelcoat exterior (white)

Solid reinforced GRP keel, chines and hull bottom

Vinylester resin in first outer layer of hull

Watertight collision bulkhead forward

Hull windows are glass full length port and starboard



All exterior stainless mirror-finish with ground polished welds, 316 marine grade

Antifouling: 2 coats epoxy undercoat, 2 coats antifoul with Propspeed coating to propellers & Pod Drive gear

Fenders x 4, dock lines x 4 and boat hook

Fire extinguishers, portable x 4

Gelcoat - 1 liter, shipped on board

Owner’s manual - high quality and comprehensive

Safety labels - English language

Washer/Dryer combination machine (Premium Brand) located in companionway



Acoustic & thermal insulation to Engine room

Air conditioning condenser units - (BTU's) 36,000, 16,000, 12,000 & 6,000

All through hull fittings on or below the water line fitted with ball valves, all hoses double clamped

Bilge pumps, auto & manual override x 4

Engine hatches insulated & removable

Engine monitoring display (Volvo) - 7' inch Glass Bridge MFD

Engine mounts - anti vibration

Engine room lighting, LED (DC)

External & internal seawater strainers for main water intakes -engines, generator & air conditioning

Fire suppression system for engine room with automatic/manual controls

Fresh water heater (AC)

Fresh water pump, Secondary backup pump (switched independently)

Fresh water system (pressurized) 2 x 400 liter tanks, total capacity 800 liters (211 US gallons)* (approx.) displayed in Czone

Fuel lines all swaged

Fuel shut-off valves

Fuel tank, GRP coated in fire retardant resin, 3000 liters (792 US Gallons)*approx. displayed within Volvo Engine monitoring & visual site gauge on tank

Holding tank capacity 400 liters (105 Gallons)*Approx.

Sanitation system with overboard pump out switch & deck fitting for dock side pump out

Tender winch, electric for tender retrieval

Trim Tabs - Volvo trim assist system

Venting dorade system for engine and air intakes & fans (DC)



Enclosed hardtop - GRP double molded, 4 sides toughened glass, with sliding side windows, opening rear bulkhead to connect indoor/outdoor areas

Sunroof, GRP electric open/close sliding over forward cockpit

Sunroof, Tinted glass electric open/close sliding over helm/dinette area. Includes manual sliding screen & blind

Targa on hardtop painted Riviera Platinum with all electronics to be black where applicable

Hardtop painted Riviera Platinum



Alternators - Independent start bank and independent house bank (total x 4)

Alternators - Port alternator charges start bank, secondary port alternator charges auxiliary bank. Starboard alternator charges starboard start bank & secondary starboard alternator charges house bank.

Batteries (Maintenance free) - Independent port & stbd start (total x 4), Auxiliary (x2) & house 24V x 3 (300AHr Total/210AHr Usable Li-Ion bank)

Battery banks individually isolated

Battery charger (24V/100A) for house bank

Battery charger (24V/30A) for start banks & auxiliary

Battery paralleling system for emergency engine starting

Bonding system, to all metallic hull fittings under the water line with zinc anode including galvanic isolator

Digital monitoring system including AC& DC power metering, fluid tank level monitoring & DC circuit status via 10'' color LCD touch screen mounted at aft saloon and 5'' Touch control screen at helm

Inverter 2.5kW to operate entertainment, 1 x Galley GPO and ice machine in the absence of generator or shore power

Navigation lights (international standard)

Wiring coded, numbered & assembled in looms where possible

Generator - Onan EQD 21.5kW/60Hz with muffler, fresh water-cooled including sound shield, remove stop/start electronic & hour meter)

Backlit R Logos x2 fitted to deck sides



Forward stateroom - 24” LED TV, Fusion Apollo 670 Stereo with FM, Bluetooth, Airplay and Partybus, 2 x Fusion Speakers

Master stateroom - 32” LED TV, Fusion Apollo 670 Stereo with FM, Bluetooth, Airplay and Partybus, 2 x Fusion Speakers

Saloon – 43” LED TV on electric lift, Fusion Apollo 770 Stereo with FM, Bluetooth, Airplay and Partybus, 4 x Fusion speakers with 4 channel Fusion Amplifier plus subwoofer to saloon, (TV powered off inverter)

Cockpit - Fusion Apollo 670 Stereo with FM, Bluetooth, Airplay and Partybus. 2 x JL Audio Speakers with 4 channel JL Audio amplifier

Foredeck – 2 x Fusion speakers connected to Zone 2 of cockpit Fusion Apollo 670 Stereo



Anchor - stainless steel 35kg (77lbs) ultra anchor, 70m (230ft) of 10mm (3/8'') galvanized chain

Anchor lockers- access to anchor chain, storage, fresh & saltwater outlets

Anchor safety strap

Anchor winch vertical with overload protection, suits rope and chain, up & down via plug in remote control & mounted counter at helm.

Bow rail welded stainless steel (316 marine grade, highly polished) with mid safety wire including flag staff and burgee (bow flag)

Bow roller stainless steel self-loading - through bowsprit, heavy duty

Cleats - Stainless steel, 11'' (x 8)

Rub rail - impact and UV resistant PVC (white) with stainless steel insert strip

Spotlight on hardtop, remote control at helm

Sunpad area to have a small fold up bimini (color to match cockpit awning) also with cover (white stamoid)

Swim Platform, hydraulic operation (up/down 350kg max), teak laid, including recessed stainless steel swim ladder hatch

Windscreen cover, front (Black breezeway)

Grabrails fitted to transom steps



Access hatch into tender garage

Access to Engine room through 3 x hatches with stainless steel lockdowns

Bulkhead, sliding stainless steel door with awning style opening upward window, tinted tempered glass, with gas strut, safety latch & lock

Cockpit floor, teak laid

Double action manual bilge pump for engine room

Garage for tender storage, opens with electric actuator, includes electric winch (may not suit all tenders)

Garbage bin within wetbar

Handheld shower hot & cold (Fresh water)

Lighting, overhead & courtesy (DC)

Lounge to transom, Drink holders either side within arm rest, upholstered in vinyl (white) also includes fender storage location and cover (White Stamoid)

Lounge, L shaped in vinyl (white) with storage beneath including cover (white stamoid)

Master battery isolator panel, portside

Self-draining cockpit to the stern

Steps to side decks port & starboard

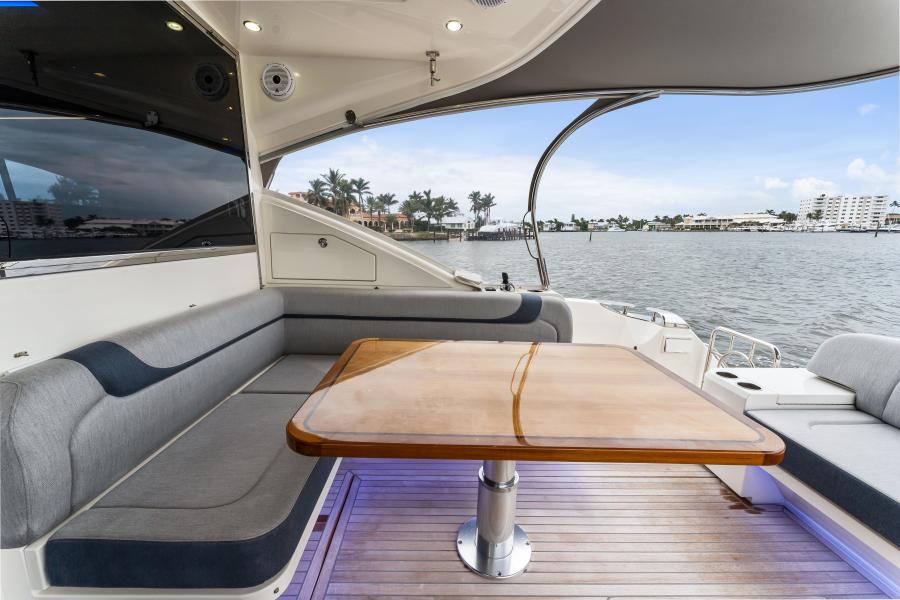

Table, Teak to L shaped lounge mounted on single electric hi/lo pedestal with infill cushion for conversion into daybed includes cover (white stamoid)

Transom stainless steel gates (x2)

Washdown salt and fresh water quick-connects

Riviera Platinum Wet bar including benchtop, refrigerator, icemaker, sink with folding hot/cold faucet & 2 x electric BBQ, extraction fans, & fold down lid with auto safety shutoff

Courtesy lights fitted beneath transom lounge back



Air conditioning - reverse cycle heat, 3 x 12,000BTU to saloon/galley with helm outlets and windscreen outlets

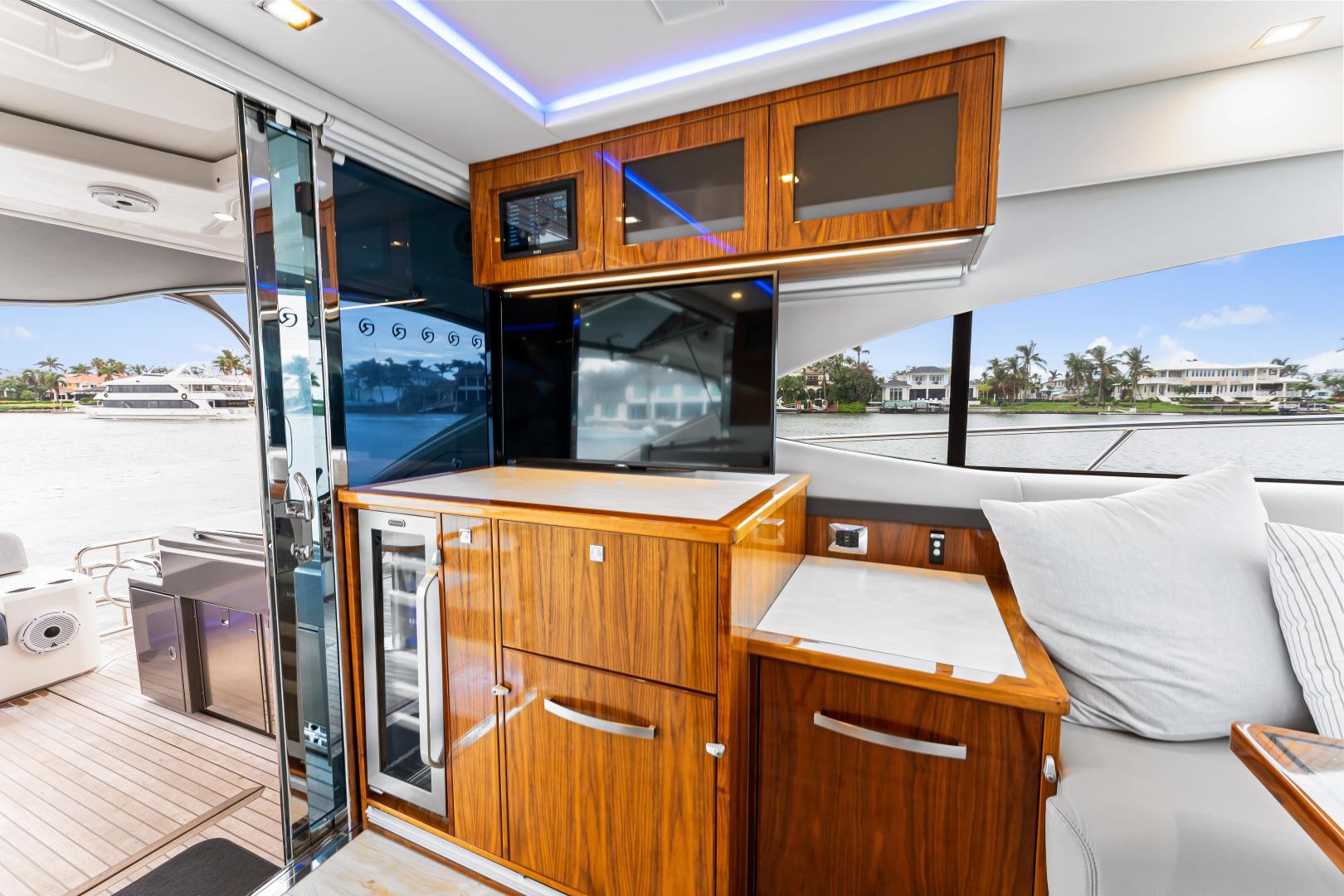

Cocktail cabinet with bottle storage, drawers for glass storage, 1 x refrigerator drawer, 1 x freezer drawer & wine cooler

Courtesy lights in stairs to cabins

Dishwasher drawer

Flooring, Vinyl (Premium Grade)

Galley - built in overhead storage lockers with positive locking hardware

Galley - Exhaust fan

Galley - Microwave convection oven (Miele)

Galley - Refrigerator Drawer unit (2 drawers)

Waterfall galley benchtop in solid surface with stainless steel sink and faucet, also incorporating recessed cooktop including lid with cutoff switch & drop in bin with cover

Galley storage cabinets & drawers

Lighting overhead & courtesy DC (LED)

Lounge, saloon L shaped companion lounge to port side

Saloon dinette L shaped

Table to dinette, varnished timber on fixed height pedestal



Air conditioning 6,000BTU with reverse cycle heat, split to head

Berths, upper and lower (innerspring mattresses) with storage under

Carpet with underlay

Hanging locker with cedar-lining

Hatch - white with screen and blind

Hull and head linings, vinyl covered with padding

Private entrance door

Reading and overhead lighting (DC), LED



Access to private ensuite with privacy lock

Air conditioning: 12,000 BTU with reverse cycle, heat (split into head)

Carpet with underlay

Fixed hull windows fitted port and starboard in tinted tempered glass including roller blinds matching saloon selection

Hanging locker port with cedar lining & auto lighting (DC), stbd storage locker cedar lined with shelve

Hatch - white with screen and blind

Headboard – upholstered

Hull and head linings, vinyl covered with padding

Private entrance door

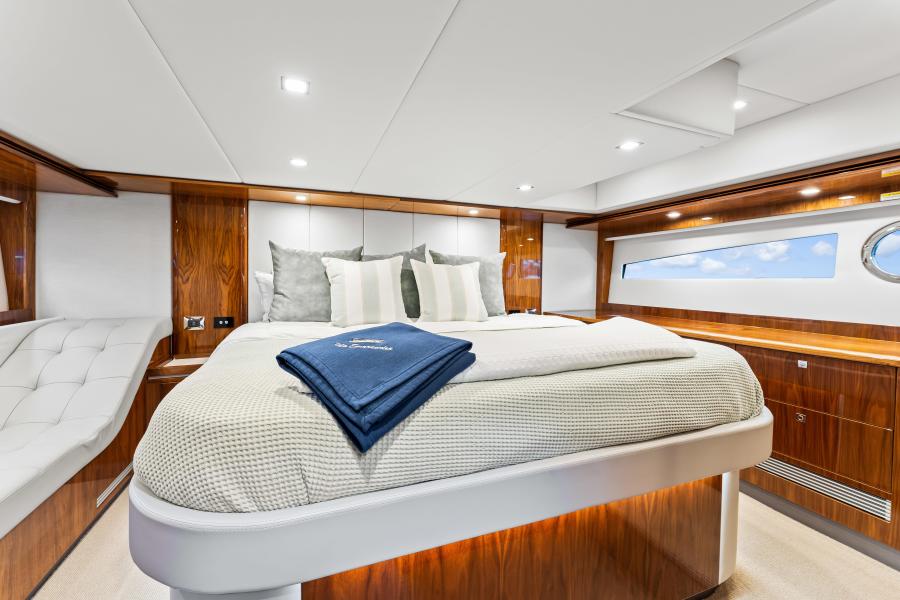

Queen walkaround berth with latex mattress & storage under berth including drawers

Reading and overhead lighting (DC)

Storage cabinets outboard with positive locking hardware



Air conditioning 12,000 BTU with reverse cycle heat, split to ensuite

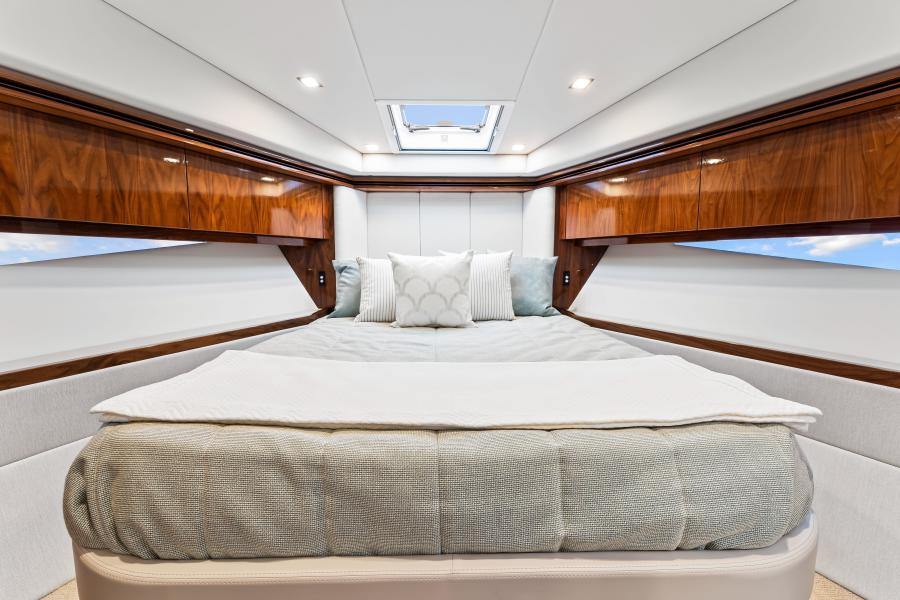

Berth, King size latex mattress

Carpet with underlay

Drawers and storage to portside

Fixed hull windows fitted port and starboard in tinted tempered glass including roller blinds matching saloon selection

Hanging lockers (x2) cedar lined with auto lighting

Headboard – featured

Hull and head linings, vinyl covered with padding

Portholes, 2 x round opening portholes and screens, includes alarm to helm

Private entrance door

Reading and overhead lighting (DC, LED)

Master Stateroom - Chaise Lounge



Contemporary design, solid surface benchtop with above bench bowl sink and high quality mixer tap

Extraction Fan

Flooring - Corian to match benchtop selection with brick style pattern

Holding tank level indicator


Overhead and vanity mirror lighting (DC)

Porthole, 1 x round opening porthole with screen, includes alarm to helm

Private entrance door

Shower stall with glass partition, frameless glass door, automatic sump pump and shower head (on slide bar)

Storage locker with shelves under bathroom sink

Toilet roll holder, towel holder and accessories

Toilet, freshwater flush

Vanity cabinet



Contemporary design, solid surface benchtop with above bench bowl sink and high-quality mixer tap

Entrance to starboard head from companionway & private ensuite from stateroom forward

Exhaust Fan

Flooring - Corian to match benchtop selection with brick style pattern

Hatch - white with screen and blind


Overhead and vanity mirror lighting (DC)

Shower stall with glass partition, frameless glass door, automatic sump pump and shower head (on slide bar)

Storage locker with drawers under bathroom sink

Toilet roll holder, towel holder and accessories

Toilet, freshwater flush

Vanity cabinet



Anchor chain counter

Companion seat shaped to port side

Compass, 4.75 inch with light

Directional air conditioning outlets to helm and vent outlets to windscreen

Ergonomically designed console with drink holders, storage tray, electronic engine controls and joystick docking control

Helm Chair (x1) electric Recaro (color to compliment dash)

Navigation - 2 x 16' inch 7616 Volvo Glass Bridge multi-function displays, GPS & GRID controller

Navigation - Garmin GSD 26 CHIRP Sounder with 1kW B275 depth/temp transducer

Navigation - Volvo/Garmin auto pilot integrated into glass bridge

Steering wheel leather sports

VHF radio with aerial

Windscreen, clear tempered glass with 3 pantograph wipers with washers plumbed off freshwater system



A comprehensive range of factory fitted electronic packages and custom fitments are available through Riviera Australia, from fish finders to underwater lights. Contact dealer for details.



AC power outlets (doubles) to all staterooms, heads, galley, saloon, cockpit and engine room

Outlets with Ground Fault Circuit Interrupter (GFCI) protection

Shore power (AC) 1 x Cablemaster (220V/50 amp

Vessel AC system built to 110V/220V 60Hz


Manufacturer Installed Optional Features


  • Twin Volvo IPS 950 D11 Diesel (533kW-725 HP) including low speed mode, DPS, Volvo Autopilot, ACP, line cutters, twin lever electronic controls (helm) and joystick controls x 2 (Helm and Cockpit), two (2) 17 inch 8617 Garmin-Volvo glass bridge screens


  • Joystick, cockpit (x 1) with station select-start-stop control
  • Cockpit Joystick – Additional joystick station mounted to cockpit – total x2 port and starboard
  • Czone – Configuration for IPad connectivity. Includes programming and Wi-Fi interface (does not include IPad)
  • Tropical Package – Air Conditioning for saloon upgraded to 48,000 BTU also includes heat reflective film to windscreens (front and sides) along with sunroof glass
  • Water maker preparation, includes Czone programming, circuit with cable for power, through-hull connection for future installation
  • High Pressure Water Cleaner plumbed to outlets at bow and cockpit (supplied with 33’ hose and spray wand)



  • Fuel filters – water separator for engine and generator, DUAL to main engines


  • Cockpit Speaker Upgrade – Includes 4 x 7.7 inch and 2 x 8.8 inch JL Audio M6 Blue Backlit speakers powered by JL Audio 6 channel amplifier


  • Swim platform rails – 2 x removable stainless-steel side rails (1 x port and 1 x starboard with horizontal mid rail)
  • Additional transom fixed cleats mounted to lower transom style-line


  • Dyson “multi-floor” cordless rechargeable vacuum cleaner with detachable long-reach wand, charging station and dedicated GPO


  • Saloon table upgrade to electric lift hi-lo table with infill cushion allows conversion of dinette into daybed


  • Two Cabin floorplan – lower lounge (upholstery to match saloon selection) converts to king single berth (includes bedding kit)
  • 24 inch LED TV and 12V AM/FM/CD/DVD player and two speakers (TV powered off inverter)


  • Solid surface benchtop color – as fitted to galley, Cockpit and Heads (including head floor) in corian


  • Upholstery – Master Stateroom – Chaise Lounge in leather
  • Upholstery – Bedhead, bed surrounds and bedside inlays to compliment


  • Saloon, Galley, Stairs, and Companionway flooring in commercial grade vinyl (Narrow Plank Upgrade)
  • Staterooms fitted with 100 percent wool carpet


  • Saloon – Upholstery to Lounges in leather


  • Soft Furnishing Package (includes fitted bed linen, pillowcases, bedspreads and scatter cushions)


  • Galleyware Package (32 piece Cutlery set, 32 piece Dinner set, 2 x Kitchen towels, Tumblers 8 x Medium, 8 x Large, 8 x Wine Glasses, 8 x Champagne Flutes, Salad Bowl and Salad Servers)
  • Bathware Package (4 x Beach towels, 8 x Bath towels, 3 x Hand towels, 3 x face towels, 3 x Bath mats and Spa pack)


  • Timber – Walnut interior including high-gloss finish varnish throughout


  • Upgrade roller blinds (Saloon) to electric with manual rear bulkhead
  • Upgrade roller blinds (Master Stateroom) to electric


  • Custom painted hull – Atomic Silver
  • Boot Stripe to follow chine line up to bow


  • Cockpit Awning – Yacht Acrylic – Fixed forward section only with integrated quarter panel strata-glass clears to port and starboard


  • Master cabin to include small safe, mounted in hanging locker


  • Saloon Side Window Covers – Black Breezeway


  • Triangular Quarter Panel clears to cockpit port and starboard with additional grabrails (Strata-glass with no tabings)


  • Upholstery upgrade to cockpit lounge and foredeck Sunpad – Sunbrella – R logo embroidery on transom lounge to compliment fabric selection
  • Exterior scatter cushions package x 4 in Sunbrella


  • Screens – 2 x 17 inch Volvo Glass Bridge 8617 including GPS and GRID controller
  • Sounder-Transducer CHIRP – Garmin GSD 26 CHIRP Sounder with 1 kW B275LHW depth-temperature transducer
  • Radar – Garmin GMR Fantom CHIRP 54 Open Array radar with SeaView mount 72 NM


  • Engine Room Camera – Garmin GC 200 IP Dome Camera (infrared)
  • Awning camera fitted to stainless rail
  • Anchor Camera


  • Underwater lighting (3) Lumitec Seablaze full color spectrum
  • Foredeck lighting (6 each side) Hella easy fit blue


  • Seakeeper – Seakeeper 9


Electrical Equipment

Shore Power Inlet

50 Amp Service With Remote Retractable Glendenning Cable Master


Onan EQD 21.5 KW 60HZ With Muffler And Sound Shield


Mastervolt 2.5 KW To Operate Entertainment, Galley Outlets, And Ice Maker



Garmin GSD 26 Chirp With 1kW Transducer


Garmin GMR Fantom Chirp 54 Open Array Radar 72 Mile With Seaview Mount


Dual Garmin (2) 8617 MFDs


Dual (2) Garmin Volvo Glass Bridge 8617 MFDs

Navigation Center

Dual (2) Garmin Volvo Glass Bridge 8617 MFDs With GRID Controller


Dual (2) Garmin Volvo Glass Bridge 8617 17 Inch Multi Function Displays With GPS And GRID Controller


Volvo-Garmin Autopilot Integrated Into Glass Bridge 8617 MFDs


Fusion Apollo 770 And Three (3) Fusion Apollo 670




Cockpit Speakers

JL Speakers With Amplifier


Garmin VHF With AIS

Inside Equipment

Seakeeper 9


Fisher Paykel

Washing Machine

Washer Dryer Combo Unit

Electric Bilge Pump


Miele Microwave And Convection Oven

Manual Bilge Pump

Microwave Oven

Miele Microwave And Convection Oven

Air Conditioning

Dometic Multi Zone Reverse Cycle Upgraded Tropical Package

Electric Head

Techma-Dometic Freshwater Electric Flush


Reverse Cycle

Hot Water


Four (4) Vitrifrigo Drawer Style Fridge-Freezer With Additional Wine Cooler And Fridge In Cockpit

Sea Water Pump

Battery Charger

Three (3) Mastervolt For House-Inverter, Engines, And Generator

Outside Equipment

Teak Cockpit

Cockpit Shower

Hot And Cold


Ocean Safety Six (6) Person Valise

Cockpit Cushions

Cockpit Table

Swimming Ladder


The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.


For more information about this vessel, please contact Jason Mashke, CPYB.
We look forward to working with you!

Want more information?

Jason Mashke, CPYB

Certified Professional Yacht Broker
1306 Main Street
Sarasota Florida 34236 United States
Cell: 1-941-345-3200

As a member of the International Yacht Broker's Association (IYBA) and one of few Certified Professional Yacht Brokers (CPYB), Jason is continually seeking knowledge in order to better serve the clients of SYS. As with the rest of the SYS team, Jason is committed to doing whatever it takes to satisfy the needs of his clients. "Please call on me day or night for any of your boating needs."
