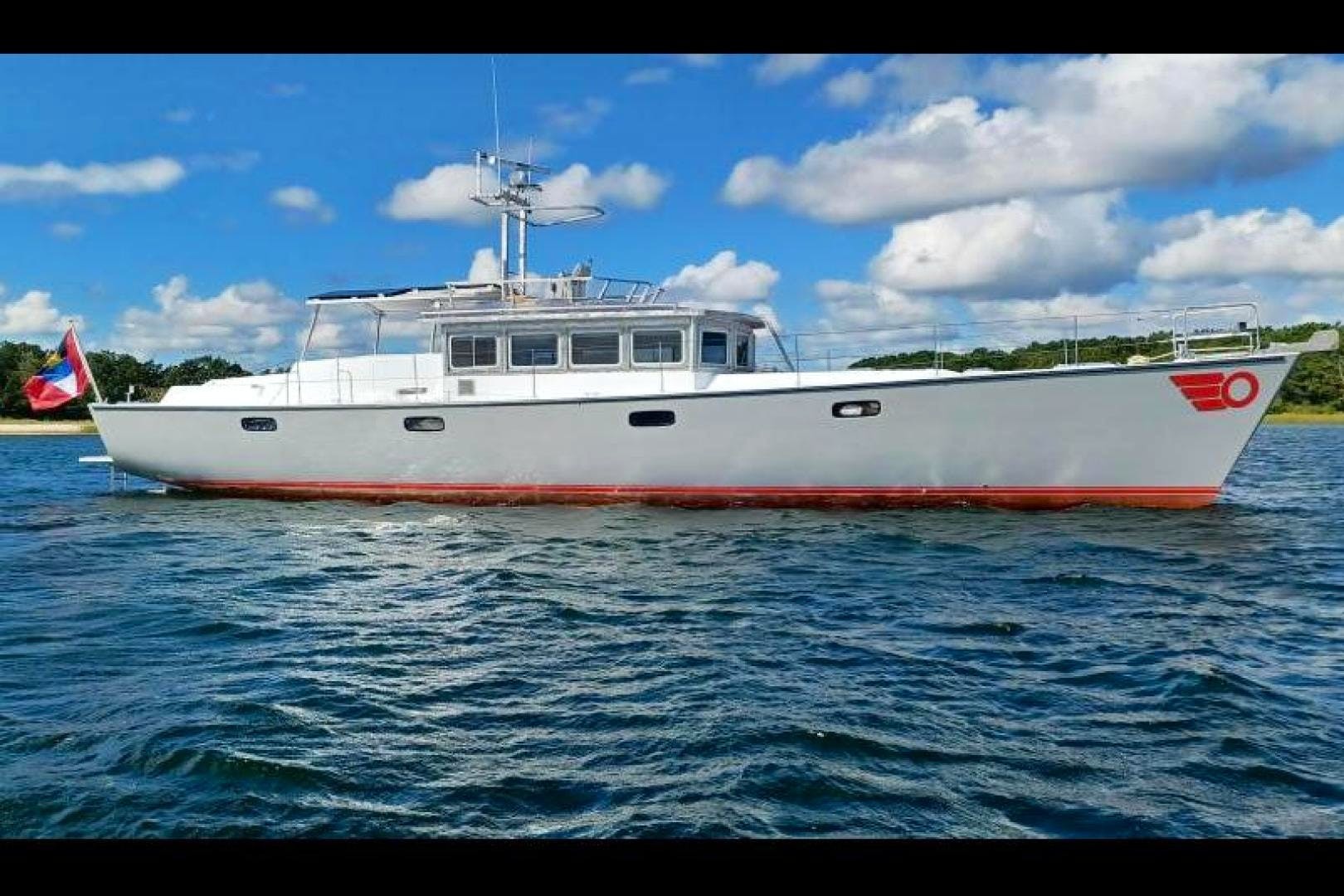

Ocean Voyager
Long Range Power Boat
72' /
22m
New York ,
United States
FEATURES:
Data Sheet
LOA | 75' (22.86 meters) |
---|---|
Type | power |
Year | 2021 |
Beam | 18' |
Draft Max | 5' |
Fuel Type | Diesel |
Hull Material | Composite |
Engines
Engine 1
Hours Date | 10-15-2021 |
---|---|
Engine Make | Vovlvo |
Engine Model | D3 EPA tier II |
Engine Type | Inboard |
Power HP | 150.00 |
Power KW | 112.00 |
Fuel Type | Diesel |
Hours | 100.00 |
Engine Location | Port |
Engine 2
Hours Date | 10-15-2021 |
---|---|
Engine Make | Vovlvo |
Engine Model | D3 EPA tier II |
Engine Type | Inboard |
Power HP | 150.00 |
Power KW | 112.00 |
Fuel Type | Diesel |
Hours | 100.00 |
Engine Location | Starboard |
Generators
Generator 1
Generator Make | Northern Lights |
---|---|
Generator KW | 16.00 |
Full Details
Detailed Specification
MAIN CHARACTERISTICS

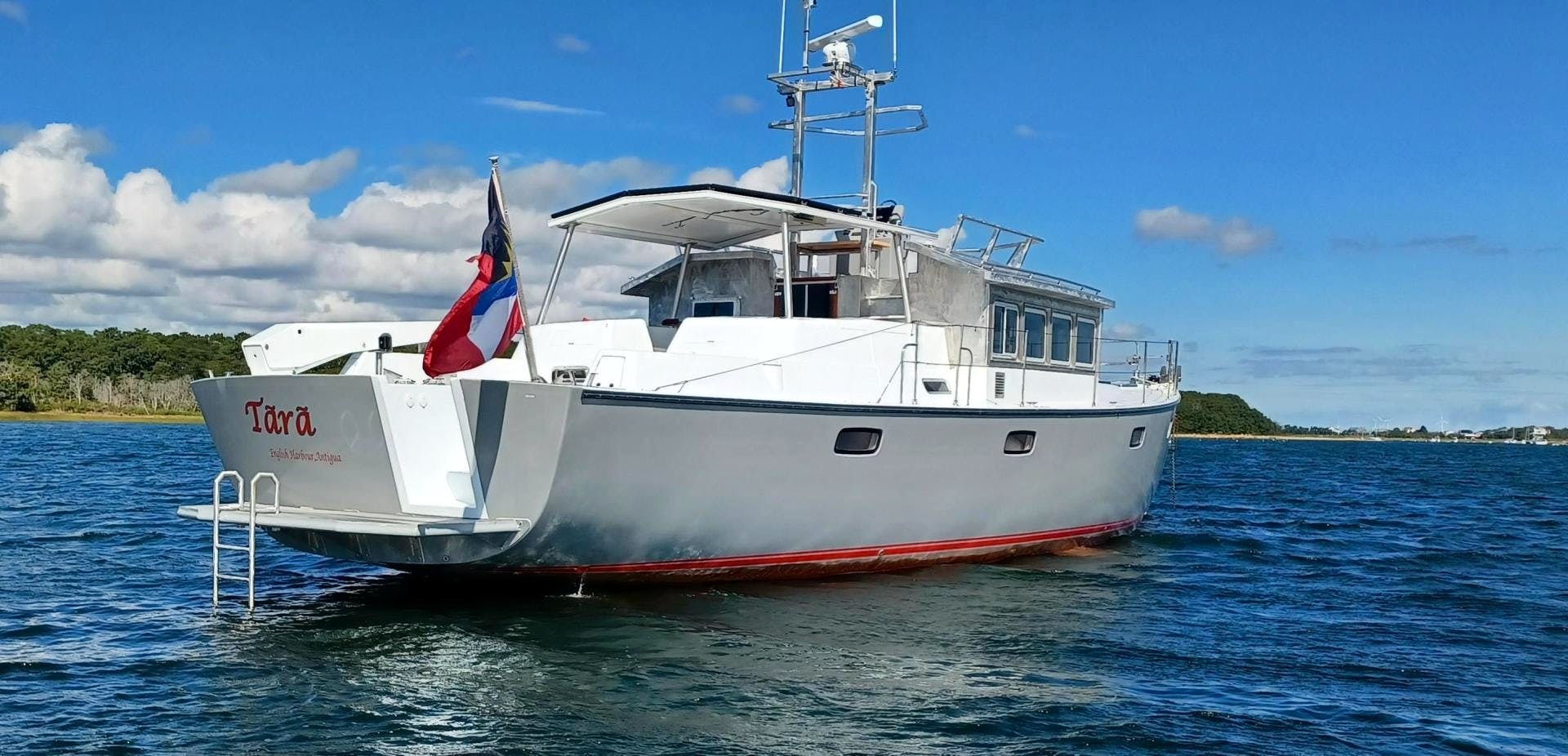

Name: TARA
Type: Long Range Power Boat
Builder: Ocean Voyager
Year: 2021
Hull No: Custom
LOA: 22.86 M/75’00”
LOD: 21.34 M/70’00”
Beam: 5.65 M/18’06”
Draft: 1.67 M/ 5’06”
Gross Tonnage: 57GT
Displacement (Fully Loaded): 34 tons/30,800 kg
Hull Material: Vinylester resin Divicell Foam core
Hull Configuration: Displacement
Superstructure: Aluminum Alloy
Decks: Vinylester resin Divicell Foam core
Flag: Antigua and Barbuda
Naval Architect: Ocean Voyager
Exterior Designer: Ocean Voyager
Interior Designer: Ocean Voyager
Main Engines: 2 x Volvo D3-150 hp (112kW) EPA tier II engines
Max Speed: 12.5 kts
Cruising Speed: 9.5 kts
Range: 1,400 nm
Guest Accommodations: 8 Guests in 4 Staterooms
Crew Accommodations: 2 Crew in 1 Cabin
GENERAL
Ocean Voyager 70’ “TARA” was built to specifications based on the experienced gained from thousands of miles of cruising. The builders have well over 100,000 miles of world cruising in both sailboats and power boats. Tara was conceived to be the ultimate 2 person cruising yacht, but her 5 staterooms layout and her very voluminous interior give the owners the possibility of catering for family members, friends or crew. She is designed and constructed to be a rugged trawler yacht with good range, 1400nm, and an exceptionally efficient and economical cruising speed:
9.5kts at 3.5 Ga/hr (13l/hr)
or 2.7 nm/gallon, (.7 nm/l)

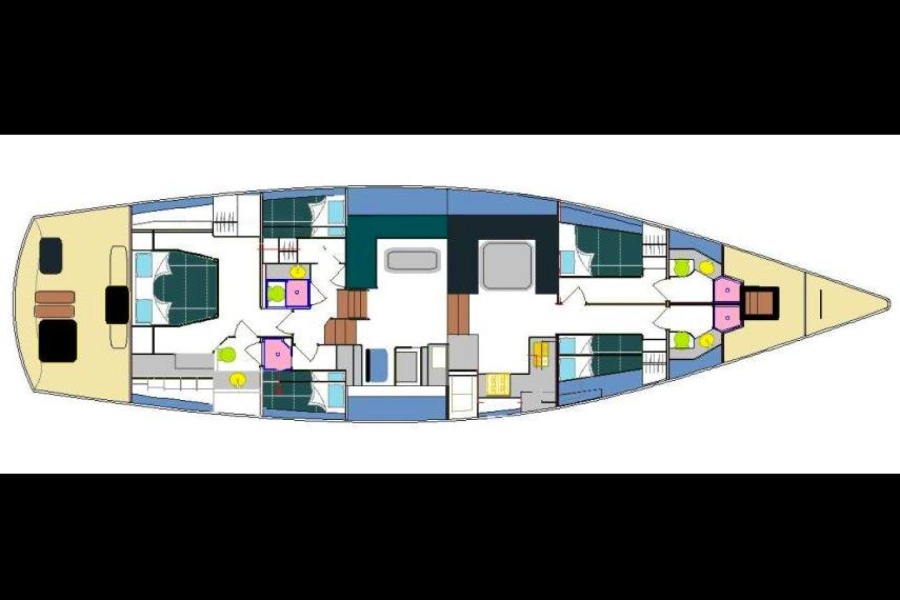

ACCOMMODATIONS
General Interior:
Interior “Antique White” composite, with Dark African mahogany joinery
Composite panel ceilings
Vinyl sisal carpets throughout (entirely removable and washable)
Roomy, light, spacious interior design with high ceilings, well insulated, and quiet
Interior furnishing was designed with ventilation a non air conditioned interior if desired, capable of great variation of temperatures, cool in tropics, warm in high latitudes.
Aft Accommodations:

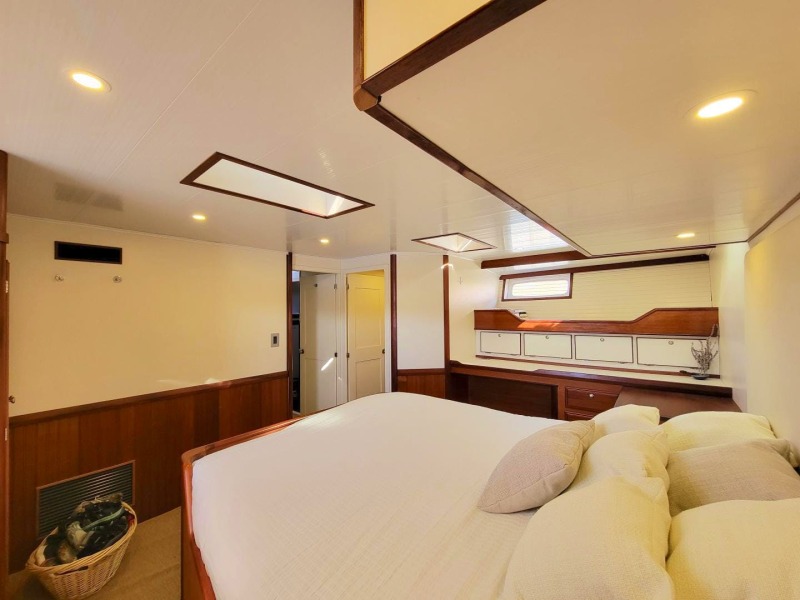

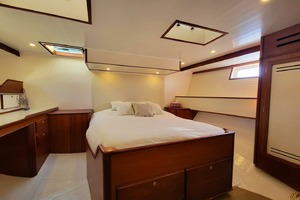

Large, full width, aft master stateroom with king size berth, Theford electric toilet, en suite head, desk, closets and storage, with one opening hatch, 2 opening portlights, and 2 non opening side portlights. 6’ 7” headroom. Closets and drawers for storage.
Two additional staterooms with upper and lower bunks (starboard and port location) with shared heads. Closets and drawers for storage.
Forward Accommodations:

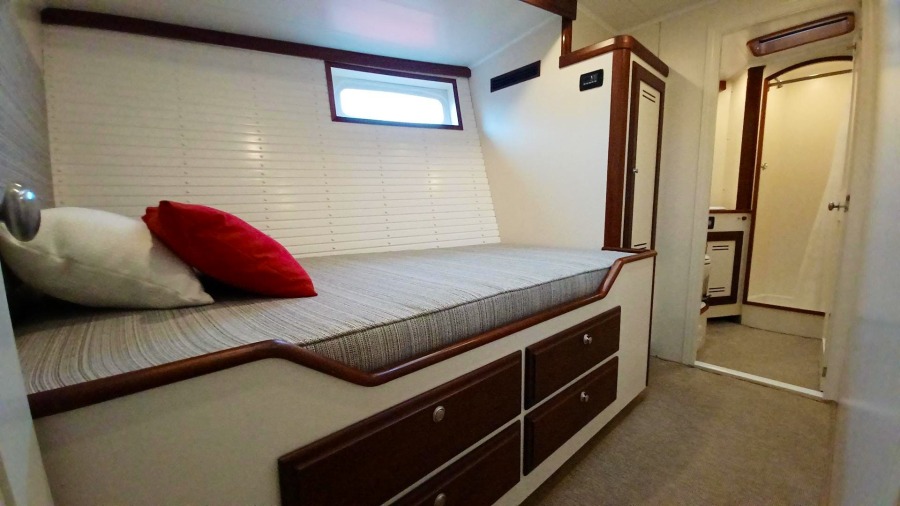

One queen port with en suite head (Theford toilet) and shower.
One double starboard with upper bunk, en suite Head (Theford toilet) and shower.
All shower and sinks hardware high polished Italian hardware. All heads have multiple storage, cabinets and mirrors. 3 black water tanks (40 gallons each) with Whale discharge pumps for pump out.
Headroom:
All staterooms 6’7 (2 m) Galley 10’ (3 m ) salon 7’ (2.2 m)
Galley (Mid-Ship):
Large stainless galley on the starboard side with a 6 to 8 person dinette opposite.
Double stainless steel sink with carbon filter drinking water faucet
Dickinson stainless steel LPG stove with oven and broiler, 3 burners
Sea frost 24vdc refrigerator with custom stainless box and plastic shelves
Sea frost 24vdc freezer with custom stainless box and custom cutting board top.
Microwave Panasonic

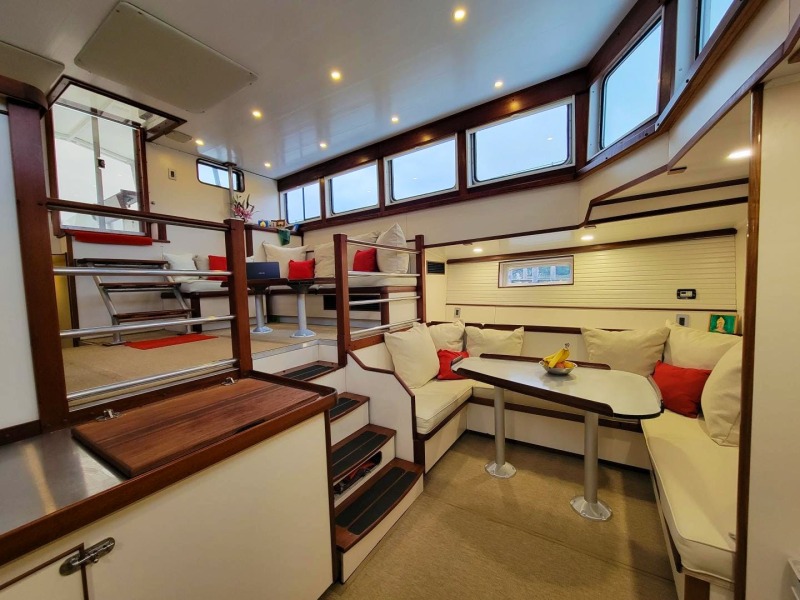

Dinette (Mid-Ship):
Opposite of the galley on the Port side is a U-shaped dinette with a table (aluminum and mahogany) and seating up to 8
TV 55’ Samsung

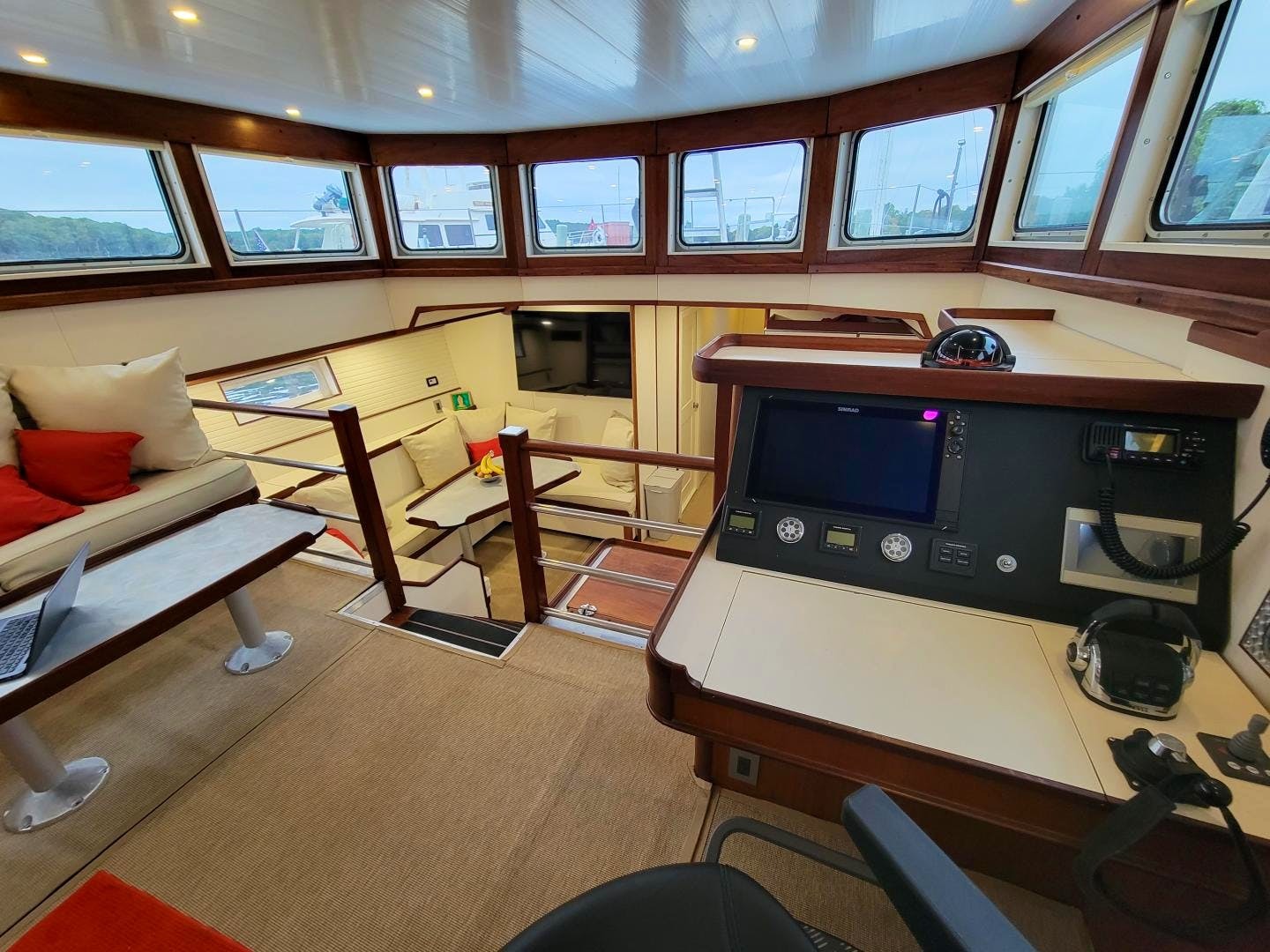

Pilothouse:
Raised salon with an “L” shaped settee to port, and the lower inside helm station to starboard. Seating up to 6, with aluminum/mahogany coffee table

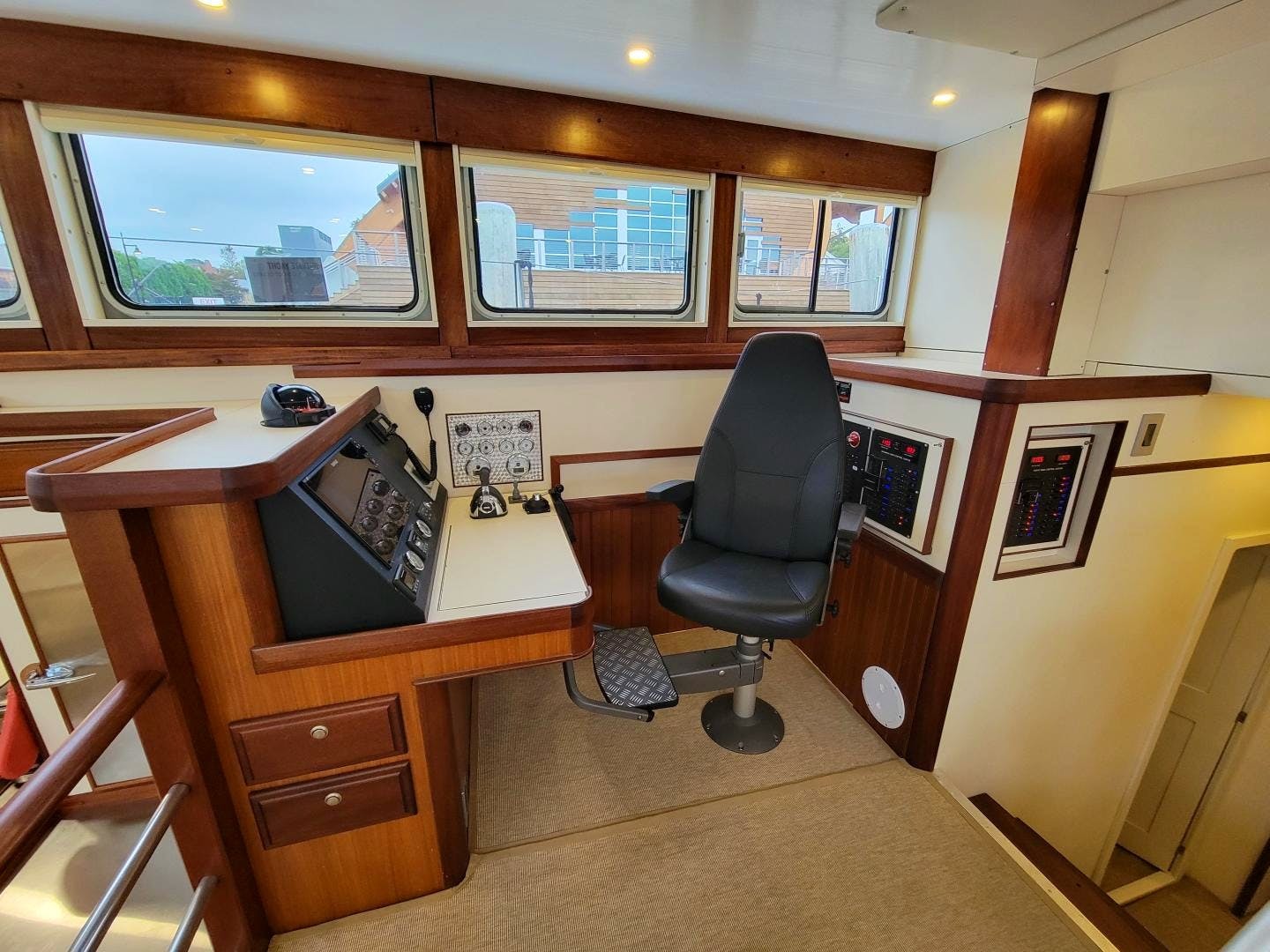

Pilothouse Helm control station with Plotter, VHF, joy stick controls, Volvo engine controls, and Stabilizer controls
On Port 30 gallon 240 VAC stainless hot water heaters
Starboard Norsap adjustable helm chair

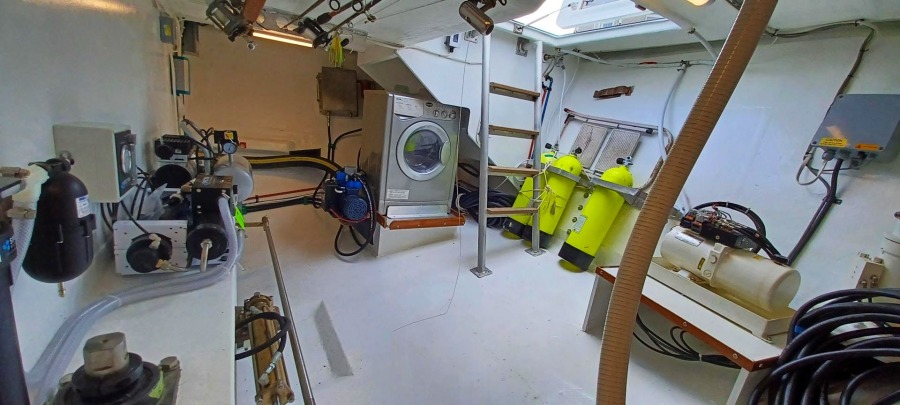

Lazarette:
Splendid washer/dryer
3 x diving tanks
Very large lazarette that houses the Steering gear, Steering pump, watermaker, crane hydraulics, and multiple storage areas
California Air (hookah compressor) with hookah hoses and mouth piece
Forecastle:
Very Large Focastle houses spare anchor, 8 (covered) bumpers, mooring lines. Thruster batteries, windlass batteries and charger

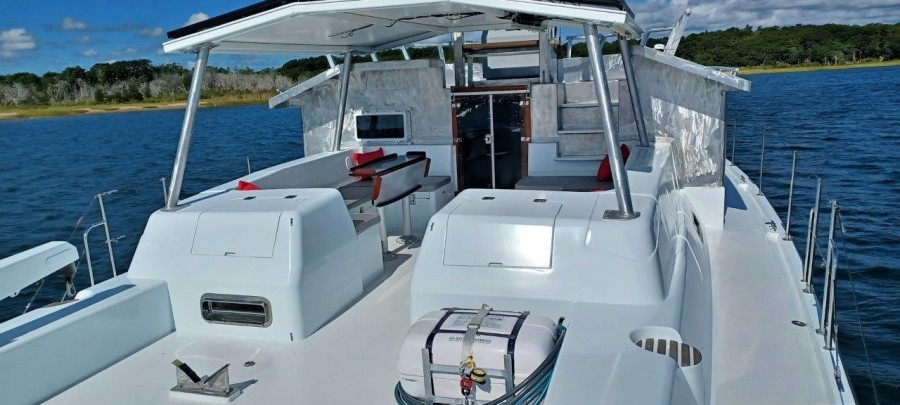

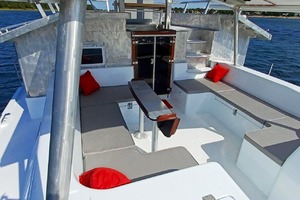

Deck Seating Area:
Outside seating for 12, with Folding dining table for 6/8, sunbrella, closed cell foam cockpit cushions
This is protected from the sun by a 12’ (3.65m) x 12’ (3.65m) hard, aluminum framed awning, which supports the (5) 320 Watts solar panels
CONSTRUCTION
Hull and deck; Vinylester resin Divicell Foam core, 1 14” deck and 1 7/8”hull
Carbon stringers 6” X 2”
Resin infused (scrimp system) hull and deck
PPG epoxy and linear polyurethane paint system

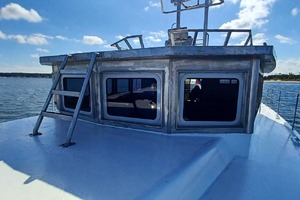

Aluminum pilothouse, 1/4” plating and framing, spray foam polyurathane insulation
Aluminum fuel tanks ¼ inches plate
4 3/8” polyethylene water tanks
Vessel was heavily constructed and insulated for Northern latitude cruising
CAPACITIES
Tonnage : 57 GT
Net Tons : 51 T
Displacement tons: 34 tons/30,800 kg
Fuel Capacity (2 x aluminum 1/4” tanks):2,422 L / 640 USG
Fresh Water Capacity (4 x heavy 3/8” polyethylene tanks): 2,220 L/560 USG
Water Maker: 1 x 1,500 L/p/D / 400 USG/p/D
Black Water: 3 x 150 L/p/D / 40 USG/p/D
Speed / Consumption p/h / Range / RPM
Maximum: 12.5 kts / 5USG/p/H / 1,200 nm / 3,000
Cruising: 9.5 kts / 3.5 USG/p/H / 1,400 nm / 2,300
Economical: 8 kts / 2.5 USG/p/H / 2,000 nm / 1,700

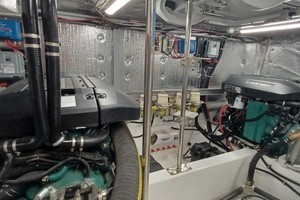

MECHANICAL EQUIPMENT
Main Engines:2 x Volvo D3-150 hp (112kw) EPA tier II engines
Engine Hours: 100 (October 2021)
Engine Controls: Volvo
Generator: 16kW Northern Lights (mechanical)
Generator Hours: 125 (October 2021)
Stabilization: Active hydraulic stabilization: Kobelt actuators with 7.5 sqft fins, powered by generator mounted 10ga/minute hydraulic pump with 24 VDC Ogura clutch, an 8 gallon reserve oil tank with filter and sight gauge
Thruster: 10” Side-power 24 VDC with 2 x 240amp/hr dedicated AGM batteries for thruster and windlass, charged by 30amp/120vac Simplex dedicated charger
Propellers: blade Michigan DQ propellers on 1/34” Aquamat shafts
Steering: and manual steering: Kobelt 24 VDC HPU200 with 24 VDC autopilot solenoid for power steering and upper helm Kobelt 7005 manual steering pump with a 3 gallon reserve oil tank with filter and sight gauge, plus a Lewmar steering wheel
Filtration: Dual Racor for each engine with/crossover
Rudders: 3” solid rudder shafts with Kobelt tiller arms and steering ram and tie-bar (shafting above rudder bearing machined to 2”) double lip shaft seals and heavy upper thrust roller bearing. Heavy welded steel plate rudders
Oil Pumps: Reverso oil change pump 24 VDC
Controls: Dual control station w/ wheel at upper station and Kobelt joy stick steering at upper and lower station
Water Pumps: Dual 24 VDC fresh water pumps with pressure tank
Fire Suppression System: 380 cu/ft Seafire Novec automatic/manual fire suppression system for engine room
ELECTRICAL
Output/Electricity: 120/240 1 phase 60hz system
Panels: Custom dedicated electrical distribution panels w/ fiber optic lighting, isolated 110v inverter distribution panel
Monitoring System: Mastervolt distribution and monitoring system

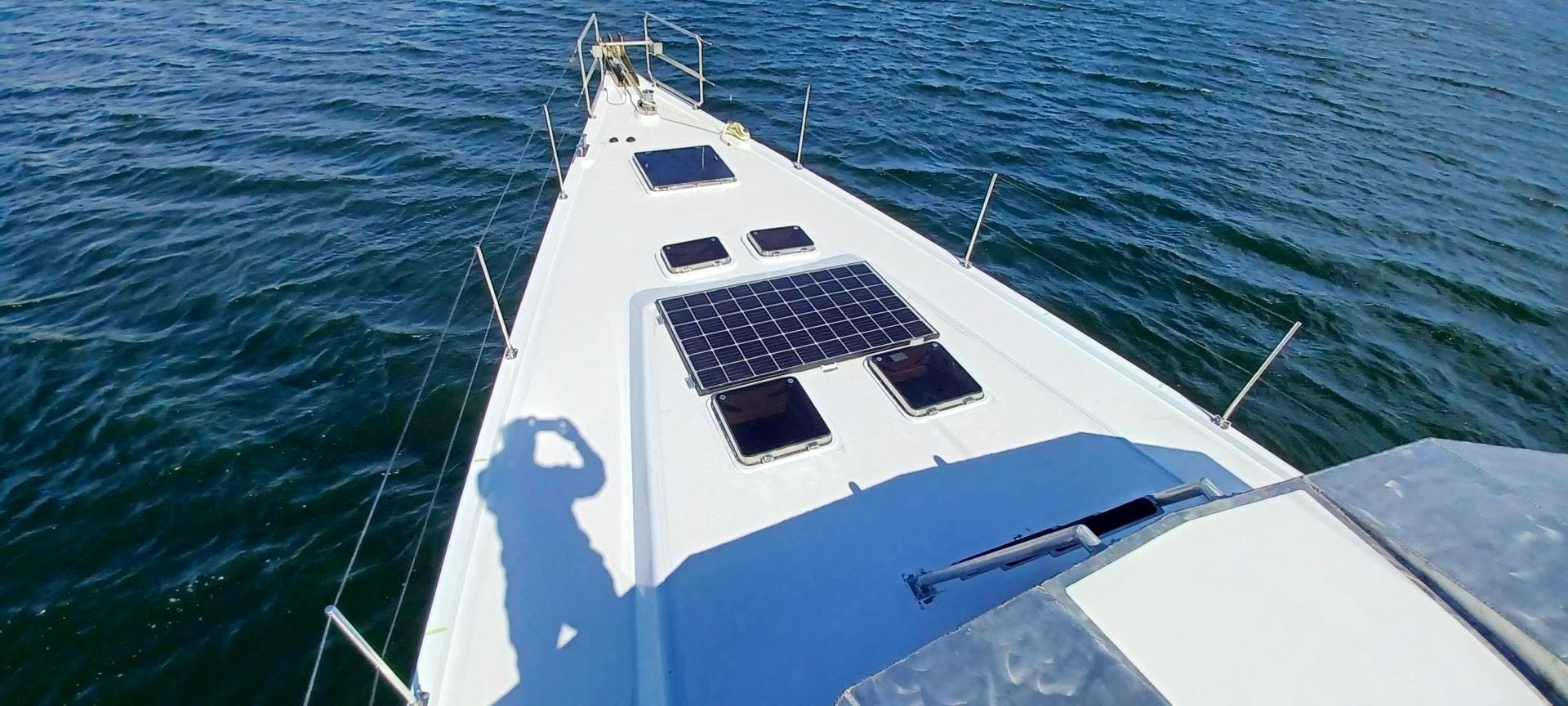

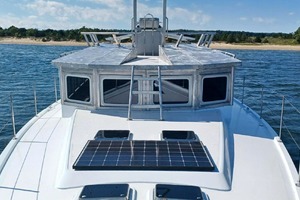

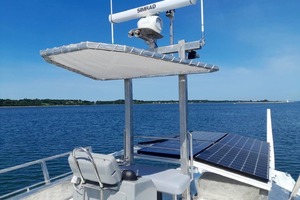

Solar System: 2000 watt system with circuit protected joiner box, consisting of 5 x 320 watt panels on the sun awning, and 1 additional 320 watt panel on the foredeck. Capable of 75 amps at 24 vdc at peak power. Basically will run all domestic functions except hot water and HVAC in most weather conditions
Solar Controller: Outback 80 amp solar controller
Chargers:2 x inverter chargers: dual Magnum 4000watt inverter from 24vdc and 120vac 120amp battery charger
House Batteries: 8 x 460 amp/hr 6vdc ROLLs L/16 lead acid
Start Batteries: Dedicated start batteries for each main engine and generator and Anchor windlas/thruster
Lighting: Interior and exterior is 100 % LED lighting
Shore Power: 50 amp shore power with 50’ cable
Air Conditioning: 5 x Dometic reverse cycle marine air conditioners
2/12,000 btu, 2/6,000 btu, 1/10,000 btu with 4 Cal Pump cooling pumps
Watermaker: 400 ga/day spectra 24vdc watermaker
ELECTRONICS
Radar: Simrad HALO 64mi radar
Plotters: 16” Simrad EVO 3 plotter with integrated autopilot, chirp sounder and Halo radar
12” Simrad EVO 3 plotter with integrated autopilot, chirp sounder and Halo radar
Alarm: Wireless bilge alarm
EPIRB: ACR global fix EPIRB
ICOM: Icom m242g GPS
AIS: Simrad AIS class B
Display: Kobelt color stabilizer control/display
DECK MACHINERY & EQUIPMENT

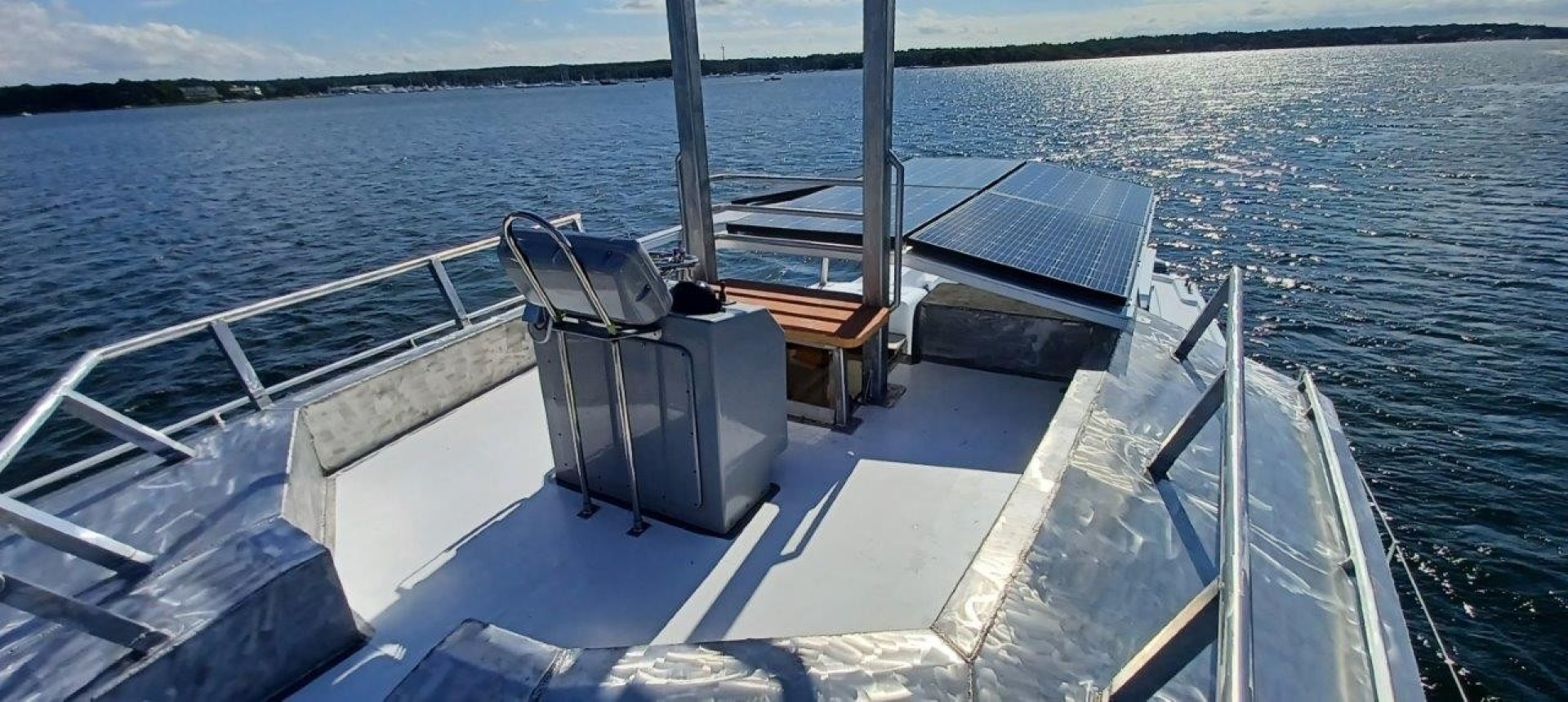

Flybridge: 9’ X 9” with a composite console/helm station. 2 person helm seat and awning

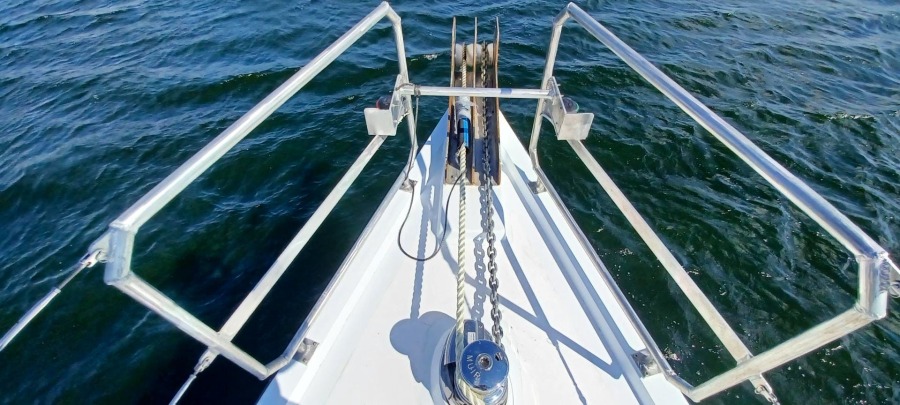

Anchors: 175# Lewmar claw anchor
75# Rocna anchor plus 250 feet of 1 inch nylon rode
Stainless bow roller ½ inch plates with dual nylon anchors
Anchor Chains: 350 feet 7/16 G4 chain
Anchor Winch: Lewmar 3500 24vdc
Crane: Nautical Structures HMC 1100 pound capacity with 3 function hydraulics, boom up/down, 350 degree rotation, winch up/down, 120vac, cable remote control
Lifelines: Dyneema
Pilot House Windows: Double glazed tempered pilothouse windows (two layers nitrogen fill) 3/8 tempered glass
Hatches: 6 x stainless steel Pompanette deck hatches with Oceanaire privacy/bug screens
1 x Lewmar (aft)
1 x large custom fiberglass lazarette hatch
Chocks: Custom dinghy
Tanks: Dual large LPG tanks with crossover valve, galley remote solenoid control, and vented LPG storage
Swim Platform: Aluminum swim-platform with composite deck, swim ladder, and dinghy dock
Bollards: 4 x large 14” stainless
Cleats: 4 x 12” stainless cleats
Rub Rail: Hard poly rub rail w/ stainless half round
Navigation Lights: LED
TENDERS & TOYS
Tenders: 12’ Highfield alloy inflatable rib with heavy plastic/ teak style sole, storage locker, double floor, Dyneema lifting harness, 20hp Yamaha outboard
EXCLUSIONS
Exclusions include all of Owner's personal effects. A detailed list of inventory and exclusions will be provided upon request.
DISCLAIMER
All speeds, measurements, capacities, consumptions, etc. may be approximate or estimated. Specifications provided for information only. Data was obtained from sources believed to be reliable and is not guaranteed by owner or brokers. Buyer assumes the responsibility to ascertain the correctness of all data contained herein and otherwise provided and must instruct his agent and surveyors to confirm all details for accuracy prior to purchase. Subject to prior sale price and inventory change or withdrawal from market without notice.
